TSB81BA3-EP

IEEE 1394a 3-Port Cable Transceiver/Arbiter

TSB81BA3-EP Features

* to Conserve Energy in Battery Powered Applications D Low-Power Sleep Mode † Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 8

TSB81BA3-EP General Description

The TSB81BA3 provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining co.

TSB81BA3-EP Datasheet (845.25 KB)

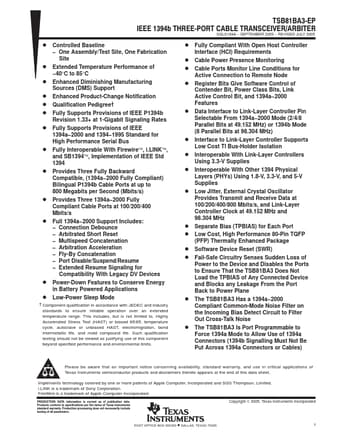

Preview of TSB81BA3-EP PDF

Datasheet Details

Part number:

TSB81BA3-EP

Manufacturer:

Texas Instruments ↗

File Size:

845.25 KB

Description:

Ieee 1394a 3-port cable transceiver/arbiter.
TSB81BA3ĆEP IEEE 1394b THREEĆPORT CABLE TRANSCEIVER/ARBITER SGLS194A

* SEPTEMBER 2003

* REVISED JULY 2005 D Controlled Baseline
<.
