TSB80R240S1 - N-Channel MOSFET

TSB80R240S1 Description

TSP80R240S1/TSF80R240S1 800V 20A N-Channel SJ-MOSFET TSB80R240S1 800V 20A N-Channel SJ-MOSFET General .
Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistan.

TSB80R240S1 Features

* 850V @TJ = 150 ℃
* Typ. RDS(on) = 0.22Ω
* Ultra Low gate charge (typ. Qg = 70nC)
* 100% avalanche tested Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR Parameter Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Dra

📥 Download Datasheet

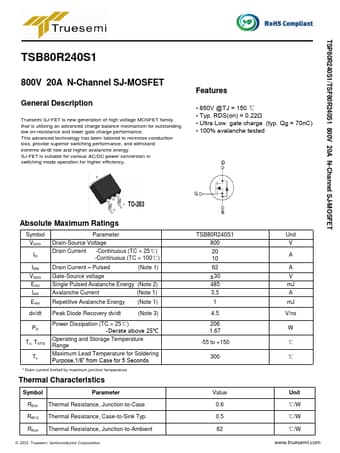

Preview of TSB80R240S1 PDF
