NP3401MR-M Datasheet, Mosfet, natlinear

NP3401MR-M Features

  • Mosfet
  • VDS =-30V,ID =-4.2A RDS(ON)(Typ.)=48mΩ @VGS=-4.5V RDS(ON)(Typ.)=70mΩ @VGS=-2.5V
  • High power and current handing capability
  • Lead free product is acquired

PDF File Details

Part number:

NP3401MR-M

Manufacturer:

natlinear

File Size:

609.26kb

Download:

📄 Datasheet

Description:

30v p-channel enhancement mode mosfet. Schematic diagram The NP3401MR-M uses advanced trench technology to provide excellent RDS(ON). This device is suitable for use as a

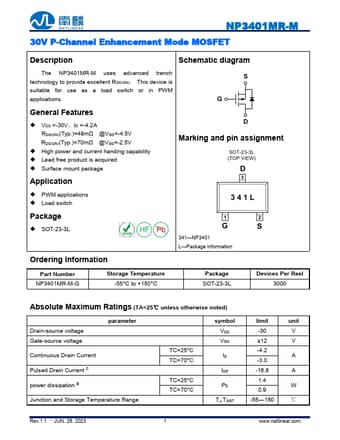

Datasheet Preview: NP3401MR-M 📥 Download PDF (609.26kb)
Page 2 of NP3401MR-M Page 3 of NP3401MR-M

NP3401MR-M Application

  • Applications General Features
  • VDS =-30V,ID =-4.2A RDS(ON)(Typ.)=48mΩ @VGS=-4.5V RDS(ON)(Typ.)=70mΩ @VGS=-2.5V
  • High power and c
