NP3404VR Datasheet, Mosfet, natlinear

NP3404VR Features

  • Mosfet
  • VDS =30V,ID =5A RDS(ON)(Typ.)=23mΩ @VGS=10V RDS(ON)(Typ.)=30mΩ @VGS=4.5V
  • High power and current handing capability
  • Lead free product is acquired

PDF File Details

Part number:

NP3404VR

Manufacturer:

natlinear

File Size:

394.27kb

Download:

📄 Datasheet

Description:

30v n-channel enhancement mode mosfet. Schematic diagram The NP3404VR uses advanced trench technology to provide excellent RDS(ON), low gate charge and high density cell

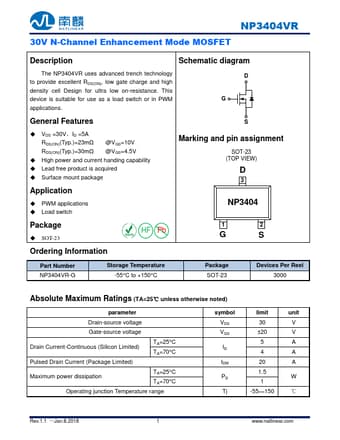

Datasheet Preview: NP3404VR 📥 Download PDF (394.27kb)
Page 2 of NP3404VR Page 3 of NP3404VR

NP3404VR Application

  • Applications D G General Features
  • VDS =30V,ID =5A RDS(ON)(Typ.)=23mΩ @VGS=10V RDS(ON)(Typ.)=30mΩ @VGS=4.5V
  • High power and cu
