NP3407VR - 30V P-Channel Enhancement Mode MOSFET

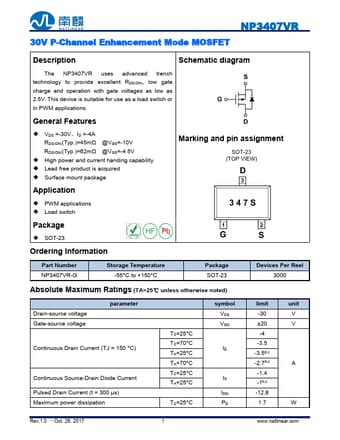

NP3407VR Datasheet Preview — Preview of NP3407VR PDF

Datasheet Details

Part number	NP3407VR
Manufacturer	natLinear ↗
File Size	728.83 KB
Description	30V P-Channel Enhancement Mode MOSFET
Datasheet	NP3407VR-natlinear.pdf

NP3407VR Product details

Description

Schematic diagram The NP3407VR uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.This device is suitable for use as a load switch or in PWM applications.General

Features

VDS =-30V，ID =-4A RDS(ON)(Typ. )=45mΩ @VGS=-10V RDS(ON)(Typ. )=62mΩ @VGS=-4.5V.
High power and current handing capability.
Lead free product is acquired.
Surface mount package Marking and pin assignment.
