NP3401VR - 30V P-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

The NP3401VR uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with low gate voltages.

This device is suitable for use as a load switch or in PWM applications.

Features

  • VDS =-30V，ID =-4A RDS(ON)(Typ. )=42mΩ @VGS=-4.5V RDS(ON)(Typ. )=58mΩ @VGS=-2.5V.
  • High power and current handing capability.
  • Lead free product is acquired.
  • Surface mount package Marking and pin assignment.

📥 Download Datasheet

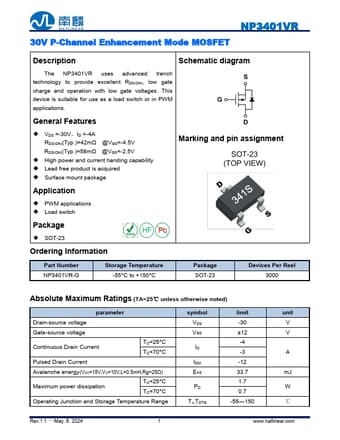

Datasheet preview – NP3401VR

Datasheet Details

Part number NP3401VR
Manufacturer natLinear
File Size 758.50 KB
Description 30V P-Channel Enhancement Mode MOSFET
Datasheet download datasheet NP3401VR Datasheet
