74AUP1G32-Q100 Datasheet, Or-gate, nexperia

74AUP1G32-Q100 Features

  • Or-gate
  • Automotive product qualification in accordance with AEC-Q100 (Grade 1)
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C
  • Wide supply voltage range

PDF File Details

Part number:

74AUP1G32-Q100

Manufacturer:

nexperia ↗

File Size:

231.08kb

Download:

📄 Datasheet

Description:

Low-power 2-input or-gate. The 74AUP1G32-Q100 provides the single 2-input OR function. Schmitt-trigger action at all inputs makes the circuit tolerant to slower

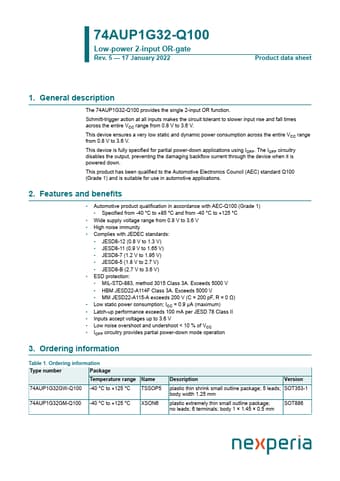

Datasheet Preview: 74AUP1G32-Q100 📥 Download PDF (231.08kb)
Page 2 of 74AUP1G32-Q100 Page 3 of 74AUP1G32-Q100

74AUP1G32-Q100 Application

  • Applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down
