74AUP1G373 Datasheet, latch, NXP Semiconductors

74AUP1G373 Features

  • Latch s Wide supply voltage range from 0.8 V to 3.6 V s High noise immunity s Complies with JEDEC standards: x JESD8-12 (0.8 V to 1.3 V) x JESD8-11 (0.9 V to 1.65 V) x JESD8-7 (1.2 V to 1.95

PDF File Details

Part number:

74AUP1G373

Manufacturer:

NXP ↗ Semiconductors

File Size:

144.41kb

Download:

📄 Datasheet

Description:

Low-power d-type transparent latch. The 74AUP1G373 provides the single D-type transparent latch with 3-state output. While the latch-enable (LE) input is high, the Q out

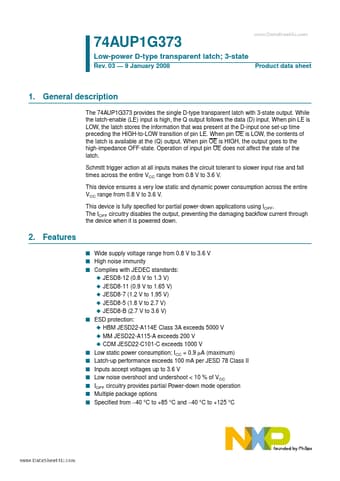

Datasheet Preview: 74AUP1G373 📥 Download PDF (144.41kb)
Page 2 of 74AUP1G373 Page 3 of 74AUP1G373

74AUP1G373 Application

  • Applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
