74HC237-Q100 - 3-to-8 line decoder/demultiplexer

Datasheet Summary

Description

The 74HC237-Q100 is a 3-to-8 line decoder, demultiplexer with latches at the three address inputs (An).

The 74HC237-Q100 essentially combines the 3-to-8 decoder function with a 3-bit storage latch.

When the latch is enabled (LE = LOW), the 74HC237-Q100 acts as a 3-to-8 active LOW decoder.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Combines 3-to-8 decoder with 3-bit latch.
Multiple input enable for easy expansion or independent controls.
Active HIGH mutually exclusive outputs.
Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JE.

Datasheet Details

Part number	74HC237-Q100
Manufacturer	nexperia
File Size	284.73 KB
Description	3-to-8 line decoder/demultiplexer
Datasheet	74HC237-Q100 Datasheet

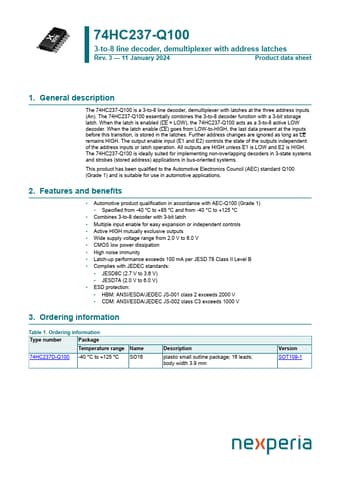

Additional preview pages of the 74HC237-Q100 datasheet.

📁 Similar Datasheet

74HC237 - 3-to-8 line decoder/demultiplexer (Philips)

74HC237D - 3-to-8 Line Decoder/Latch (Toshiba)

74HC238 - 3-to-8 line decoder/demultiplexer (Philips)

74HC238D - 3-to-8 Line Decoder (Toshiba)

74HC20 - Dual 4-input NAND gate (Philips)

74HC21 - DUAL 4-INPUT AND GATE (STMicroelectronics)

74HC21D - Dual 4-Input AND Gate (Toshiba)

74HC221 - Dual non-retriggerable monostable multivibrator (Philips)

74HC240 - Octal buffer/line driver (Philips)

74HC240 - High-Speed CMOS Logic Octal Buffer/Line Drivers (Texas Instruments)

Full PDF Text Transcription

Click to expand full text

74HC237-Q100 3-to-8 line decoder, demultiplexer with address latches Rev. 3 — 11 January 2024 Product data sheet 1. General description The 74HC237-Q100 is a 3-to-8 line decoder, demultiplexer with latches at the three address inputs (An). The 74HC237-Q100 essentially combines the 3-to-8 decoder function with a 3-bit storage latch. When the latch is enabled (LE = LOW), the 74HC237-Q100 acts as a 3-to-8 active LOW decoder. When the latch enable (LE) goes from LOW-to-HIGH, the last data present at the inputs before this transition, is stored in the latches. Further address changes are ignored as long as LE remains HIGH. The output enable input (E1 and E2) controls the state of the outputs independent of the address inputs or latch operation.
