74HC238-Q100 - 3-to-8 line decoder/demultiplexer

Datasheet Summary

Description

The 74HC238-Q100; 74HCT238-Q100 decodes three binary weighted address inputs (A0, A1 and A2) to eight mutually exclusive outputs (Y0 to Y7).

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Demultiplexing capability.
  • Multiple input enable for easy expansion.
  • Ideal for memory chip select decoding.
  • Active HIGH mutually exclusive outputs.
  • Multiple package options.
  • Complies with JEDEC standard no. 7A.
  • Input levels:.
  • For 74HC238: CMOS level.
  • For 74HCT238: TTL.

📥 Download Datasheet

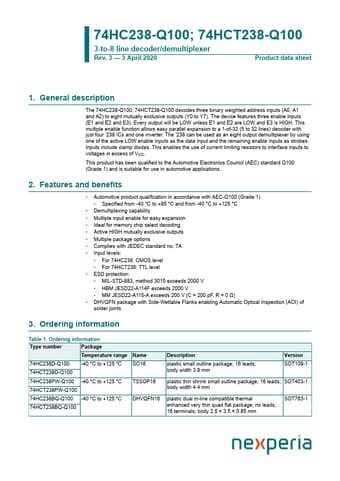

Datasheet preview – 74HC238-Q100

Datasheet Details

Part number 74HC238-Q100
Manufacturer nexperia
File Size 250.17 KB
Description 3-to-8 line decoder/demultiplexer
Datasheet download datasheet 74HC238-Q100 Datasheet
Additional preview pages of the 74HC238-Q100 datasheet.

📁 Similar Datasheet

  • 74HC238 - 3-to-8 line decoder/demultiplexer (Philips)
  • 74HC238D - 3-to-8 Line Decoder (Toshiba)
  • 74HC237 - 3-to-8 line decoder/demultiplexer (Philips)
  • 74HC237D - 3-to-8 Line Decoder/Latch (Toshiba)
  • 74HC20 - Dual 4-input NAND gate (Philips)
  • 74HC21 - DUAL 4-INPUT AND GATE (STMicroelectronics)
  • 74HC21D - Dual 4-Input AND Gate (Toshiba)
  • 74HC221 - Dual non-retriggerable monostable multivibrator (Philips)
  • 74HC240 - Octal buffer/line driver (Philips)
  • 74HC240 - High-Speed CMOS Logic Octal Buffer/Line Drivers (Texas Instruments)
Other Datasheets by nexperia
  • 74HC238 - 3-to-8 line decoder/demultiplexer
  • 74HC238D - 3-to-8 line decoder/demultiplexer
  • 74HC237 - 3-to-8 line decoder/demultiplexer
  • 74HC237-Q100 - 3-to-8 line decoder/demultiplexer
  • 74HC237D - 3-to-8 line decoder/demultiplexer
  • 74HC20 - Dual 4-input NAND gate
  • 74HC20-Q100 - Dual 4-input NAND gate
  • 74HC20D - Dual 4-input NAND gate

Full PDF Text Transcription

Click to expand full text
74HC238-Q100; 74HCT238-Q100 3-to-8 line decoder/demultiplexer Rev. 3 — 3 April 2020 Product data sheet 1. General description The 74HC238-Q100; 74HCT238-Q100 decodes three binary weighted address inputs (A0, A1 and A2) to eight mutually exclusive outputs (Y0 to Y7). The device features three enable inputs (E1 and E2 and E3). Every output will be LOW unless E1 and E2 are LOW and E3 is HIGH. This multiple enable function allows easy parallel expansion to a 1-of-32 (5 to 32 lines) decoder with just four '238 ICs and one inverter. The '238 can be used as an eight output demultiplexer by using one of the active LOW enable inputs as the data input and the remaining enable inputs as strobes. Inputs include clamp diodes.
