BUK9Q22-80L - 80V logic level N-channel MOSFET

BUK9Q22-80L Description

BUK9Q22-80L 80 V, 22 mOhm logic level N-channel MOSFET in MLPAK33 5 June 2025 Product data sheet 1.General .
Logic level N-channel MOSFET in a small MLPAK33‑WF package using Trench12 technology.

BUK9Q22-80L Features

* Logic-level compatible
* Trench12 MOSFET technology
* Efficient switching with soft body-diode recovery
* Automotive qualified to AEC-Q101 at 175°C

BUK9Q22-80L Applications

* LED lighting
* DC-to-DC conversion
* Solenoid, motor and other load switching
* Circuit protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage ID drain current Ptot total power dissipation Static charact

📥 Download Datasheet

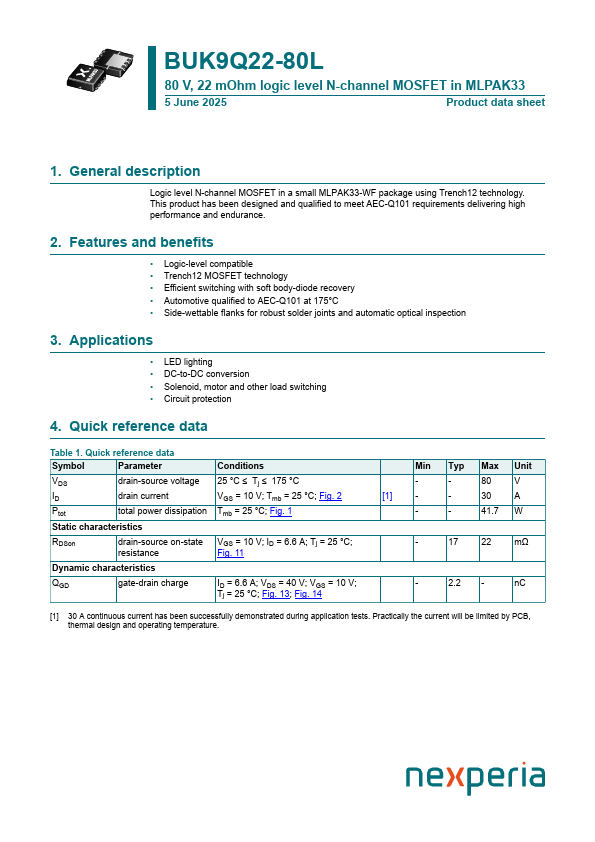

Preview of BUK9Q22-80L PDF

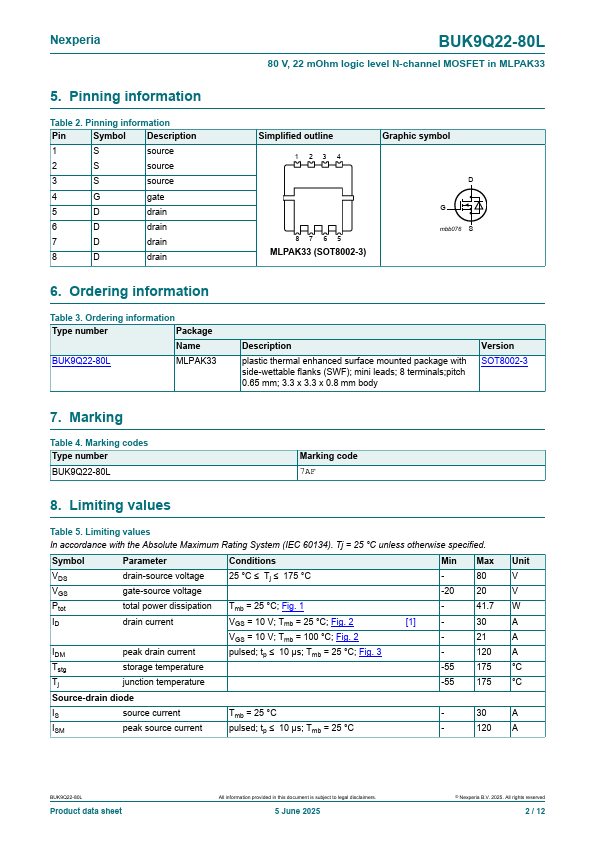

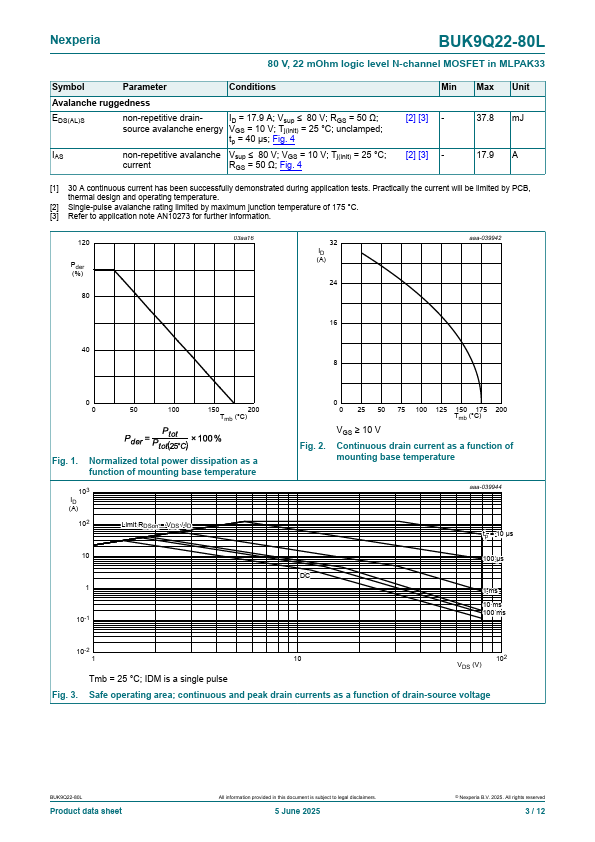

datasheet Preview Page 2 datasheet Preview Page 3
