BUK9Q45-80L 80V N-channel MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

BUK9Q45-80L 80 V, 45 mOhm logic level N-channel MOSFET in MLPAK33 5 June 2025 Product data sheet 1.General .
Logic level N-channel MOSFET in a small MLPAK33‑WF package using Trench12 technology.

📥 Download Datasheet

Preview of BUK9Q45-80L PDF

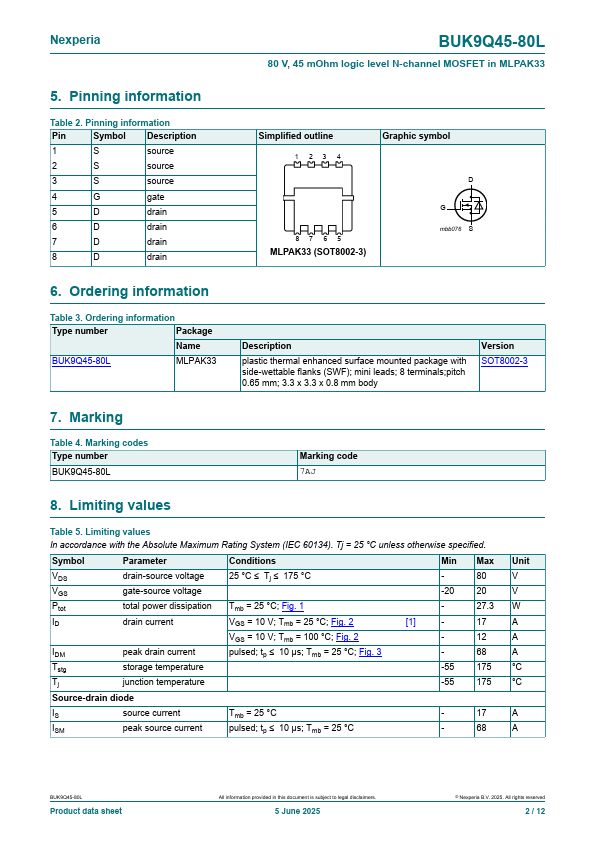

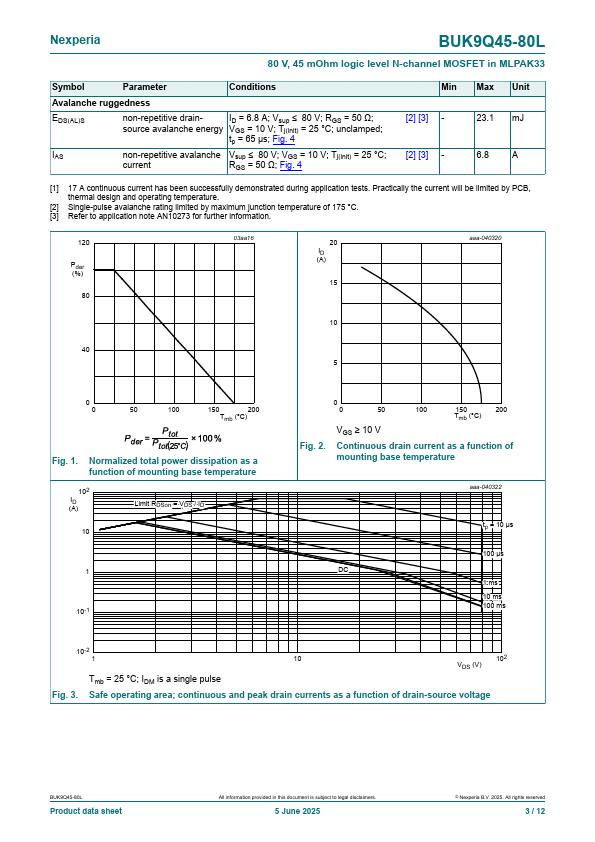

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Logic-level compatible
* Trench12 MOSFET technology
* Efficient switching with soft body-diode recovery
* Automotive qualified to AEC-Q101 at 175°C

Applications

* LED lighting
* DC-to-DC conversion
* Solenoid, motor and other load switching
* Circuit protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage ID drain current Ptot total power dissipation Static charact
