NEX10000UB Datasheet, Supply, nexperia

NEX10000UB Features

  • Supply
  • Input voltage range: 2.7 V to 5 V
  • Programmable output voltages:
  • OUTP: +4 V to +6 V (0.1 V step)
  • OUTN: -4 V to -6 V (0.1 V step)
  • Maximum

PDF File Details

Part number:

NEX10000UB

Manufacturer:

nexperia ↗

File Size:

5.14MB

Download:

📄 Datasheet

Description:

80ma dual output lcd bias power supply. The NEX10000 is a power supply IC providing programmable positive and negative output voltages for TFT-LCD panels. The device feature

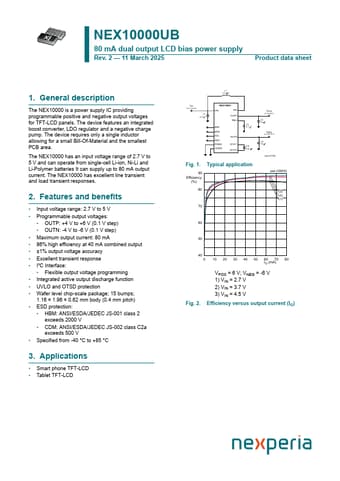

Datasheet Preview: NEX10000UB 📥 Download PDF (5.14MB)
Page 2 of NEX10000UB Page 3 of NEX10000UB

NEX10000UB Application

  • Applications
  • Smart phone TFT-LCD
  • Tablet TFT-LCD L1 4.7 H VIN 2.7 V to 5 V C1 4.7 F NEX10000 VIN SW OUTP REG ENP ENN SCL
