NEX30606 Description

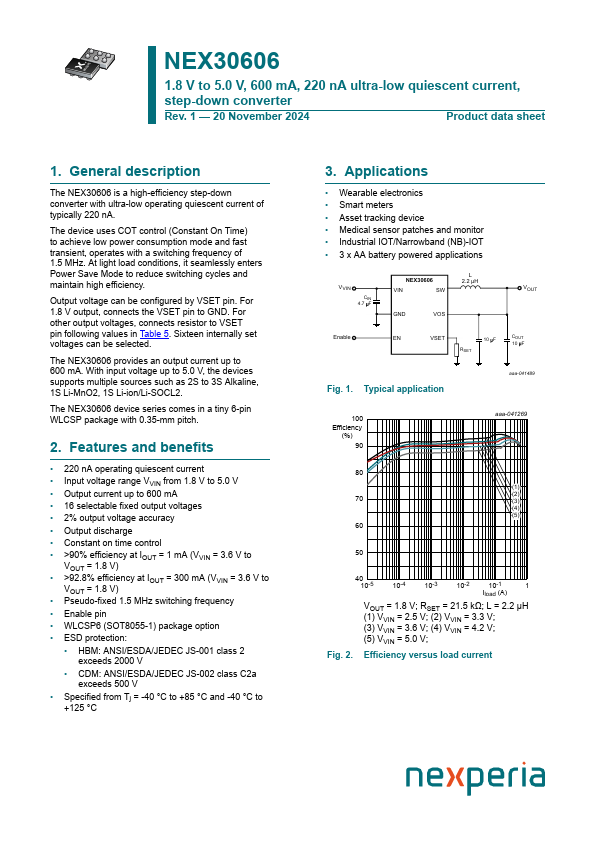

WLCSP6 NEX30606 1.8 V to 5.0 V, 600 mA, 220 nA ultra-low quiescent current, step-down converter Rev.1 * 20 November 2024 Product data sh.
The NEX30606 is a high-efficiency step-down converter with ultra-low operating quiescent current of typically 220 nA.

NEX30606 Features

* 220 nA operating quiescent current
* Input voltage range VVIN from 1.8 V to 5.0 V
* Output current up to 600 mA
* 16 selectable fixed output voltages
* 2% output voltage accuracy
* Output discharge
* Constant on time control
* >90% ef

NEX30606 Applications

* Wearable electronics
* Smart meters
* Asset tracking device
* Medical sensor patches and monitor
* Industrial IOT/Narrowband (NB)-IOT
* 3 x AA battery powered applications VVIN CIN 4.7 F NEX30606 VIN SW L 2.2 µH GND VOS VOUT Enable EN VSE

📥 Download Datasheet

NEX30606 Datasheet Preview — Preview of NEX30606 PDF

Datasheet Details

Part number: NEX30606
Manufacturer: nexperia ↗
File Size: 6.12 MB
Datasheet: NEX30606-nexperia.pdf
Description: step-down converter
