NEX10000AUB, 120mA dual output LCD bias power supply

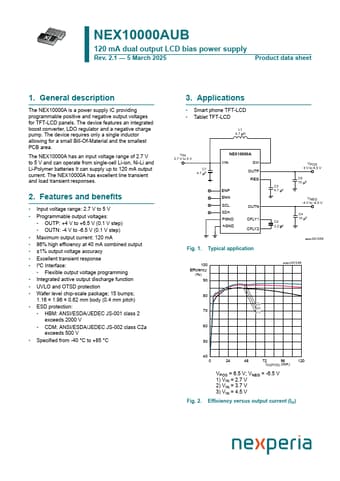

NEX10000AUB 120 mA dual output LCD bias power supply Rev.2.1 * 5 March 2025 Product data sheet 1.General .
The NEX10000A is a power supply IC providing programmable positive and negative output voltages for TFT-LCD panels.

datasheet Preview Page 1 from Datasheet4u.com

NEX10000AUB-nexperia.pdf

NEX10000AUB Datasheet Preview — Preview of NEX10000AUB PDF

Datasheet Details

Part number:

NEX10000AUB

Manufacturer:

nexperia ↗

File Size:

4.84 MB

Description:

120mA dual output LCD bias power supply

Features

* Input voltage range: 2.7 V to 5 V
* Programmable output voltages:
* OUTP: +4 V to +6.5 V (0.1 V step)
* OUTN: -4 V to -6.5 V (0.1 V step)
* Maximum output current: 120 mA
* 86% high efficiency at 40 mA combined output
* ±1% output voltage acc

Applications

* Smart phone TFT-LCD

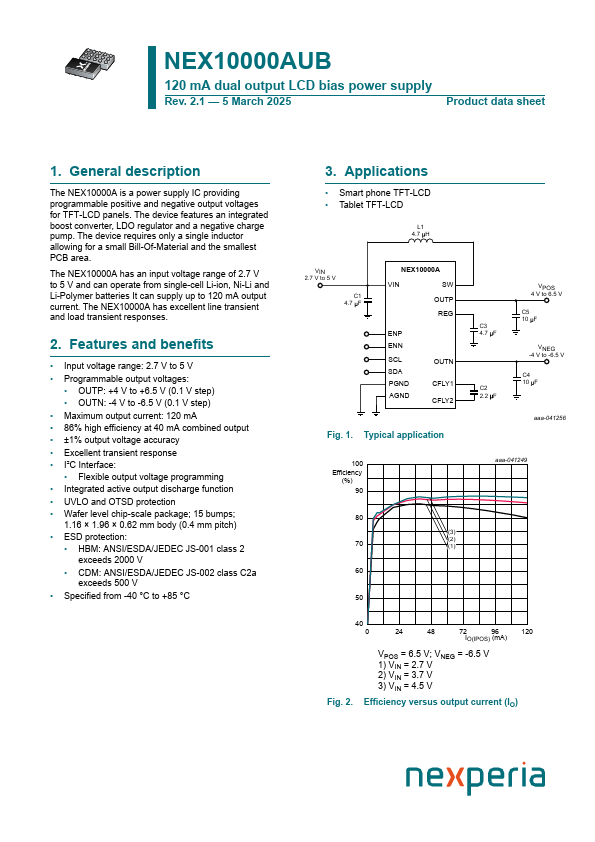

* Tablet TFT-LCD L1 4.7 H VIN 2.7 V to 5 V C1 4.7 F NEX10000A VIN SW OUTP REG ENP ENN SCL SDA PGND AGND OUTN CFLY1 CFLY2 Fig. 1. Typical application 100 Efficiency (%) 90 C3 4.7 F C2 2.2 F VPOS 4 V to 6.5 V C5 10 F VNEG -4 V to -6.5 V C4 10 F aaa-0412
