NEX10001UB Datasheet, Supply, nexperia

NEX10001UB Features

  • Supply
  • Input voltage range: 2.7 V to 5 V
  • Programmable output voltages:
  • OUTP: +4 V to +6.5 V (0.1 V step)
  • OUTN: -4 V to -6.5 V (0.1 V step)
  • Max

PDF File Details

Part number:

NEX10001UB

Manufacturer:

nexperia ↗

File Size:

3.56MB

Download:

📄 Datasheet

Description:

220ma dual output lcd bias power supply. The NEX10001 is a power supply IC providing programmable positive and negative output voltages for TFT-LCD panels. The device feature

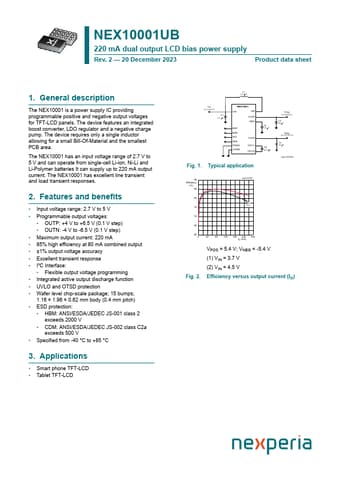

Datasheet Preview: NEX10001UB 📥 Download PDF (3.56MB)
Page 2 of NEX10001UB Page 3 of NEX10001UB

NEX10001UB Application

  • Applications
  • Smart phone TFT-LCD
  • Tablet TFT-LCD L1 4.7 H VIN 2.7 V to 5 V C1 4.7 F NEX10001 VIN SW OUTP REG ENP ENN SCL
