NEX13120F-Q100 Description

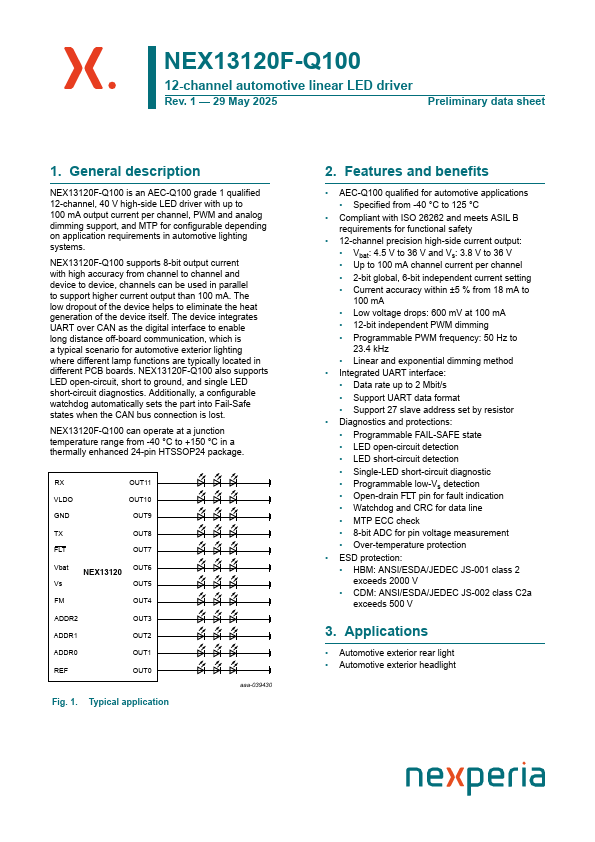

NEX13120F-Q100 12-channel automotive linear LED driver Rev.1 * 29 May 2025 Preliminary data sheet 1.General .
NEX13120F-Q100 is an AEC-Q100 grade 1 qualified 12-channel, 40 V high-side LED driver with up to 100 mA output current per channel, PWM and analog dim.

NEX13120F-Q100 Applications

* Specified from -40 °C to 125 °C
* Compliant with ISO 26262 and meets ASIL B requirements for functional safety
* 12-channel precision high-side current output:
* Vbat: 4.5 V to 36 V and Vs: 3.8 V to 36 V
* Up to 100 mA channel current per channel
* 2

📥 Download Datasheet

NEX13120F-Q100 Datasheet Preview — Preview of NEX13120F-Q100 PDF

Datasheet Details

Part number: NEX13120F-Q100
Manufacturer: nexperia ↗
File Size: 2.57 MB
Datasheet: NEX13120F-Q100-nexperia.pdf
Description: 12-channel automotive linear LED driver
