12-channel automotive linear LED driver

NEX13120-Q100 Features

* AEC-Q100 qualified for automotive applications

* Specified from-40 °C to 125 °C

* Function safety capable

* Provide documents to support function safety design

* 12-channel precision high-side current output:

* Vbat: 4.5 V to 36 V and Vs: 3.8 V to 36

NEX13120-Q100 General Description

NEX13120-Q100 is an AEC-Q100 Grade 1 qualified 12-channel, 40 V high-side LED driver with up to 100 mA output current per channel, PWM and analog dimming support, and MTP for configurable depending on application requirements in Automotive lighting systems. NEX13120-Q100 supports 8-bit output curren.

NEX13120-Q100 Datasheet (2.56 MB)

Preview of NEX13120-Q100 PDF

Datasheet Details

Part number:

NEX13120-Q100

Manufacturer:

nexperia ↗

File Size:

2.56 MB

Description:

12-channel automotive linear led driver.

📁 Related Datasheet

NEX10000AUB 120mA dual output LCD bias power supply (nexperia)

NEX10000UB 80mA dual output LCD bias power supply (nexperia)

NEX10001UB 220mA dual output LCD bias power supply (nexperia)

NEX30606 step-down converter (nexperia)

NEX40400 synchronous step-down converter (nexperia)

NEX52041 USB Type-C and Power Delivery controller (nexperia)

NEX80601DA Wide Vcc range quasi-resonant flyback controller (nexperia)

NEX80602DA Wide Vcc range quasi-resonant flyback controller (nexperia)

NEX80605DA Wide Vcc range quasi-resonant flyback controller (nexperia)

NEX80611DA Wide Vcc range quasi-resonant flyback controller (nexperia)

TAGS

NEX13120-Q100 12-channel automotive linear LED driver nexperia

Image Gallery

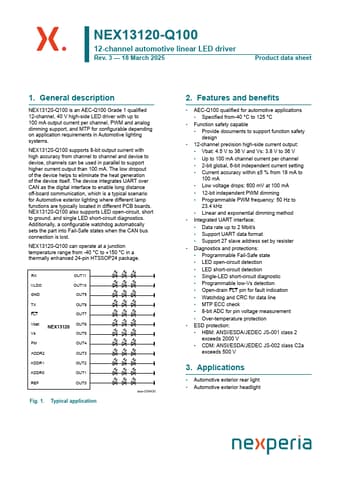

NEX13120-Q100 Datasheet Preview Page 2 NEX13120-Q100 Datasheet Preview Page 3
