NEX1324X-Q100 24-channel automotive linear LED driver

NEX1324X-Q100 Description

HTSSOP38 NEX1324X-Q100 24-channel automotive linear LED driver Rev.1.1 * 29 September 2025 Product data sheet 1.General .
NEX1324X-Q100 is an AEC-Q100 Grade 1 qualified 24-channel, 40 V high-side LED driver with up to 100 mA output current per channel, PWM and analog dimm.

NEX1324X-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from -40 °C to 125 °C
* Developed according to ISO26262 with process complying to ASIL-B
* 24-channel precision high-side current output:
* VVbat: 4.5 V to 36 V; VVs: 3.8 V to

NEX1324X-Q100 Applications

* Automotive exterior rear lights
* Automotive exterior headlights Nexperia NEX1324X-Q100 24-channel automotive linear LED driver 4. Ordering information Table 1. Ordering information Type number Temperature range Name NEX13240PE-Q100 NEX13241PE-Q100 Tamb = -40 °C to 125 °C

📥 Download Datasheet

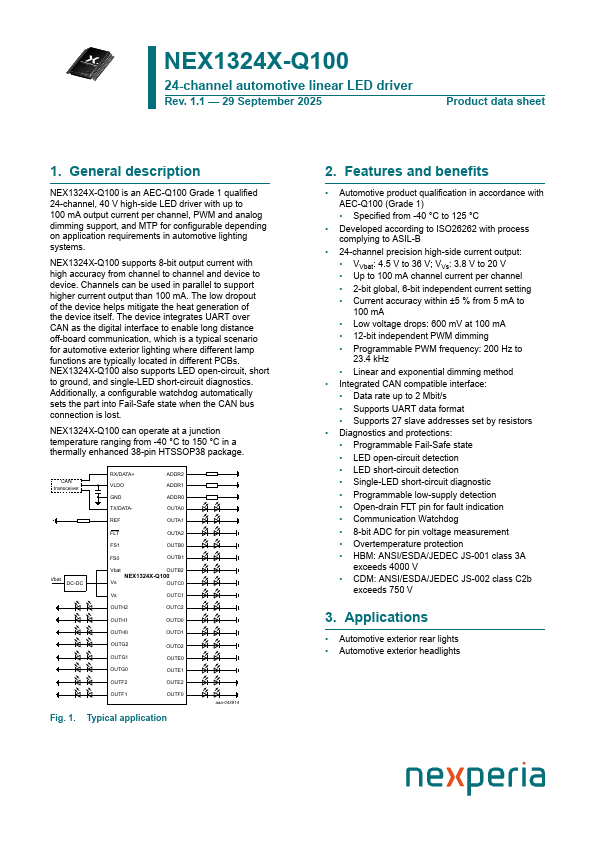

Preview of NEX1324X-Q100 PDF

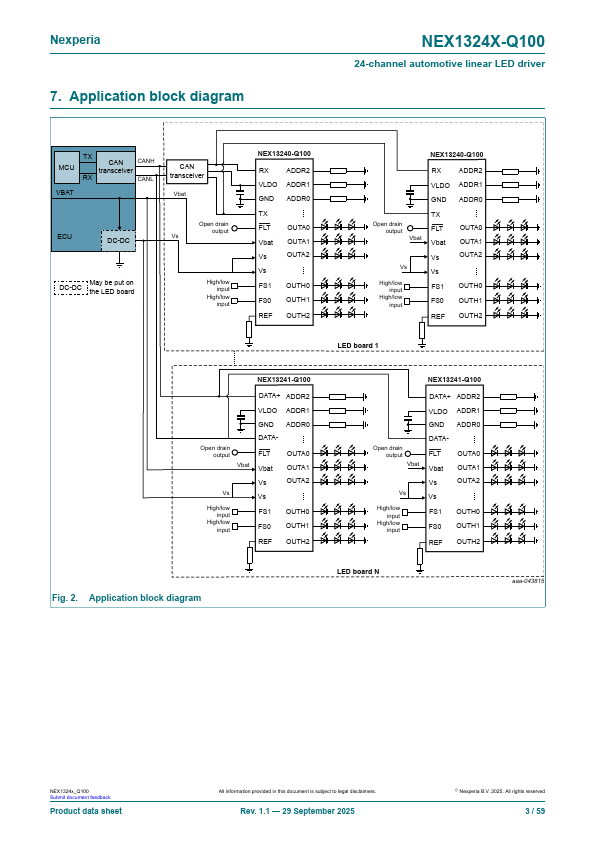

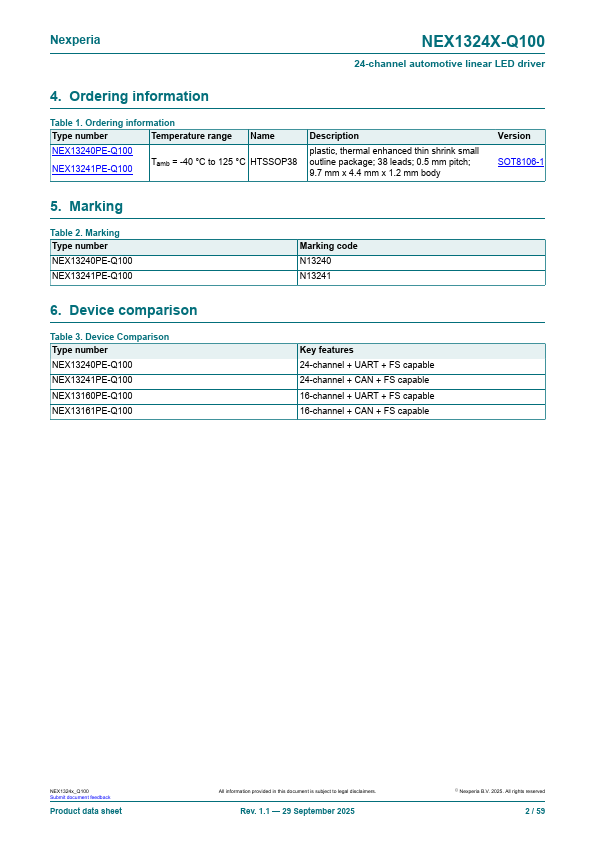

datasheet Preview Page 2 datasheet Preview Page 3
