NGW40T65M3DFP

40A trench field-stop IGBT

nexperia

NGW40T65M3DFP Features

* Collector current (IC) rated at 40 A

* Low conduction and switching losses

* Stable and tight parameters for easy parallel operation

* Maximum junction temperature of 175 °C

* Fully rated as a soft fast reverse recovery diode

* 5 μs short circuit wit

NGW40T65M3DFP General Description

The NGW40T65M3DFP is a robust Insulated-Gate Bipolar Transistor (IGBT) featuring third-generation technology. It combines carrier stored trench-gate and field-stop (FS) structures. The NGW40T65M3DFP is rated to 175 °C with optimized IGBT turn-off losses, and has a shortcircuit withstand time of 5 μs.

NGW40T65M3DFP Datasheet (258.70 KB)

NGW40T65M3DFP Datasheet Preview — Preview of NGW40T65M3DFP PDF

Datasheet Details

Part number:

NGW40T65M3DFP

Manufacturer:

nexperia ↗

File Size:

258.70 KB

Description:

40a trench field-stop igbt.

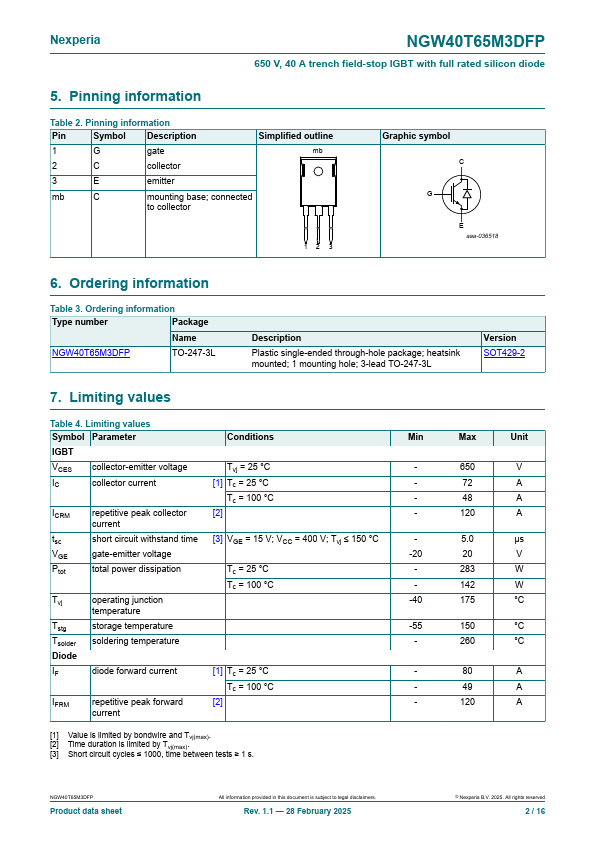

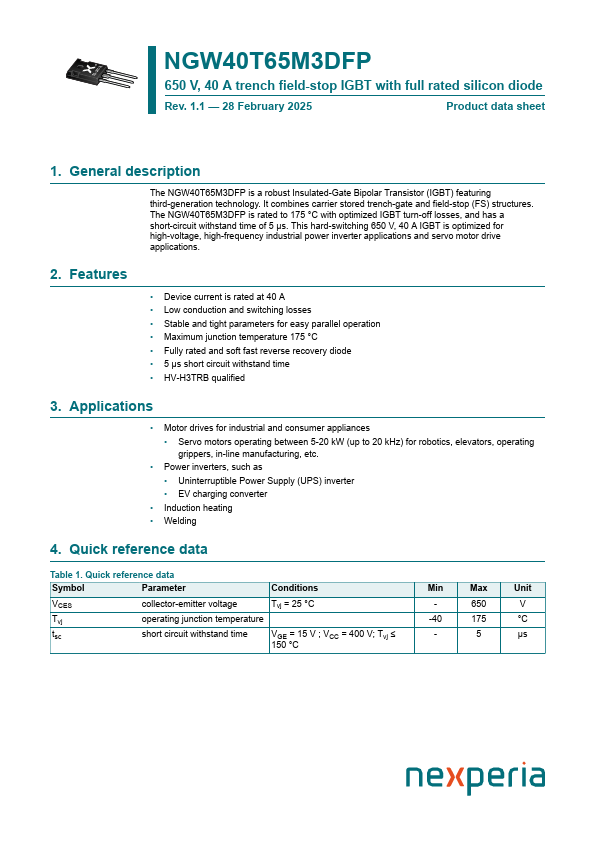

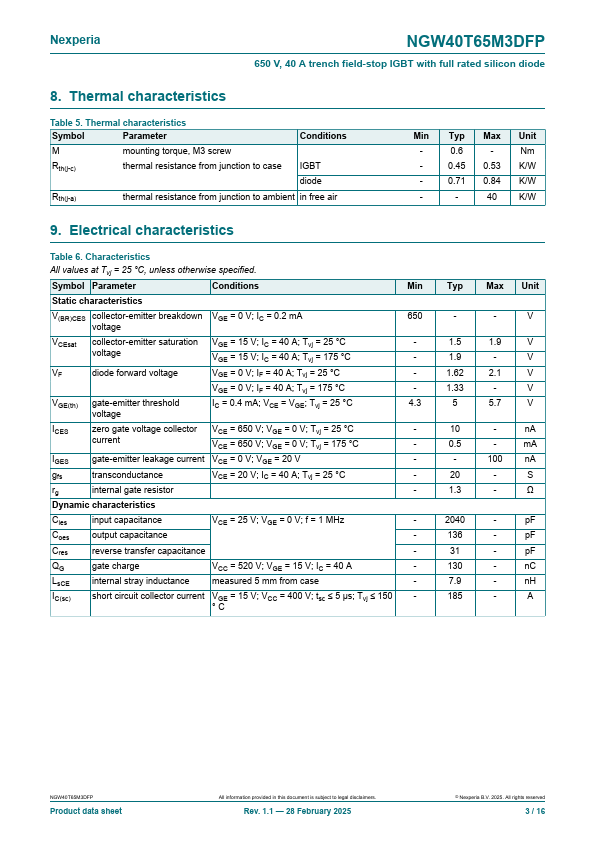

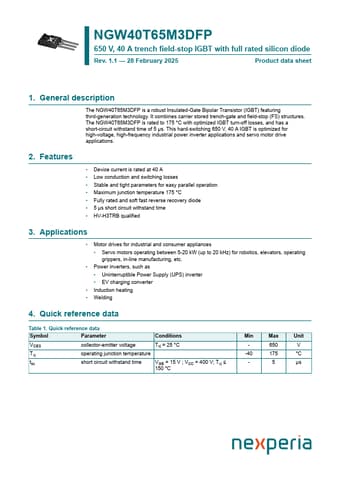

TO-247-3L NGW40T65M3DFP 650 V, 40 A trench field-stop IGBT with full rated silicon diode Rev. 1 28 June 2024 Product data sheet 1. Gene.
