PBHV9040X - PNP Transistor

PBHV9040X Description

SOT89 PBHV9040X 500 V, 0.25 A PNP high-voltage low VCEsat (BISS) transistor 9 December 2013 Product data sheet 1.General .
PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT89 (SC-62) medium power and flat lead Surface-Mounted Device (SMD).

PBHV9040X Features

* High voltage
* Low collector-emitter saturation voltage VCEsat
* High collector current capability IC and ICM
* High collector current gain (hFE) at high IC

PBHV9040X Applications

* Electronic ballast for fluorescent lighting
* LED driver for LED chain module
* LCD backlighting
* High Intensity Discharge (HID) front lighting
* Automotive motor management
* Hook switch for wired telecom
* Switch mode power supply 4. Quic

📥 Download Datasheet

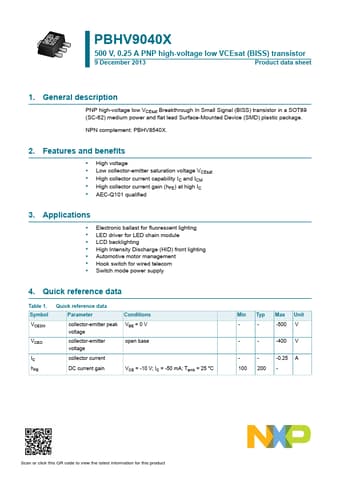

Preview of PBHV9040X PDF
