PBHV9115Z Datasheet, Transistor, nexperia

PBHV9115Z Features

• Transistor I High voltage I Low collector-emitter saturation voltage VCEsat I High collector current capability IC and ICM I High collector current gain (hFE) at high IC I AEC-Q101 qualified 1.3 A

PDF File Details

Part number:

PBHV9115Z

Manufacturer:

nexperia ↗

File Size:

118.88kb

Download:

📄 Datasheet

Description:

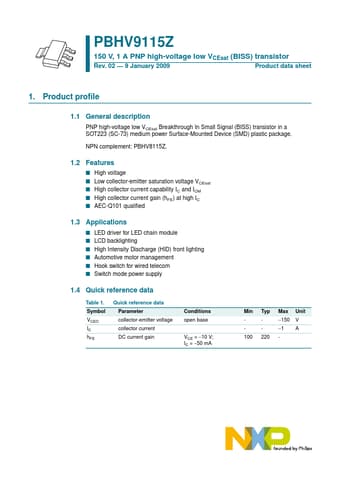

Pnp transistor. PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT223 (SC-73) medium power Surface-Mounted Device (S

PBHV9115Z Application

• Applications I LED driver for LED chain module I LCD backlighting I High Intensity Discharge (HID) front lighting I Automotive motor management I Ho
