PBHV9040Z - PNP Transistor

PBHV9040Z Description

PBHV9040Z 500 V, 0.25 A PNP high-voltage low VCEsat (BISS) transistor Rev.02 * 15 January 2009 Product data sheet 1.Product profile 1.1 .
PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT223 (SC-73) medium power Surface-Mounted Device (SMD) plastic packa.

PBHV9040Z Applications

* I Electronic ballast for fluorescent lighting I LED driver for LED chain module I LCD backlighting I High Intensity Discharge (HID) front lighting I Automotive motor management I Hook switch for wired telecom I Switch mode power supply 1.4 Quick reference data Table 1. Symbol VCESM VCEO IC hFE Qui

📥 Download Datasheet

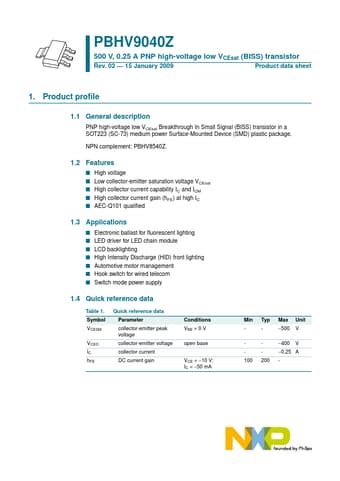

Preview of PBHV9040Z PDF
datasheet Preview Page 2 datasheet Preview Page 3
