PBSS4041PX 60V 5A PNP Transistor

PBSS4041PX Description

PBSS4041PX 60 V, 5 A PNP low VCEsat transistor 25 February 2025 Product data sheet 1.General .
PNP low VCEsat transistor in a medium power and flat lead SOT89 (SC-62) Surface-Mounted Device (SMD) plastic package.

PBSS4041PX Features

* Very low collector-emitter saturation voltage VCEsat
* High collector current capability IC and ICM
* High collector current gain (hFE) at high IC
* High energy efficiency due to less heat generation

PBSS4041PX Applications

* Loadswitch
* Battery-driven devices
* Power management
* Charging circuits
* Power switches (e. g. motors, fans) 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC ICM RCEsat collector current peak

📥 Download Datasheet

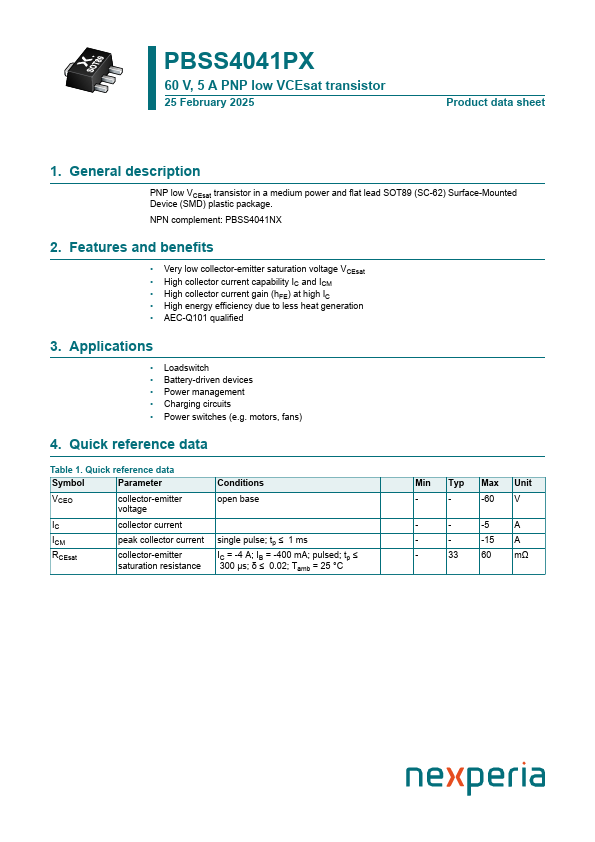

Preview of PBSS4041PX PDF

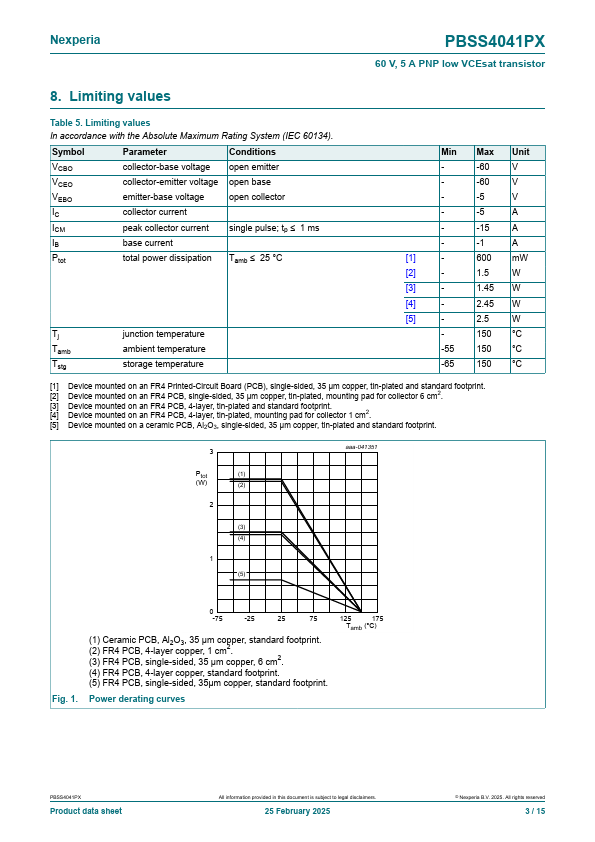

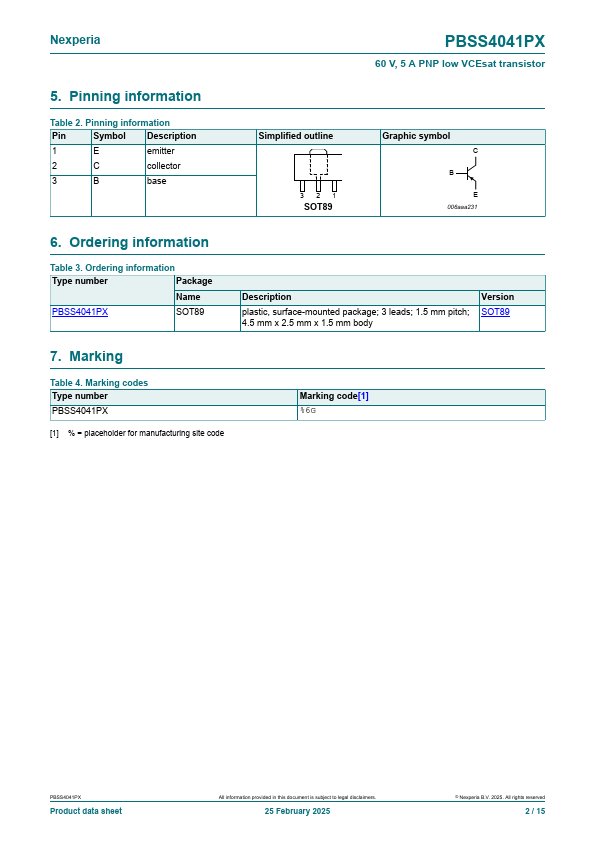

datasheet Preview Page 2 datasheet Preview Page 3
