PBSS4041NX - 60V 6.2A NPN transistor

PBSS4041NX Description

PBSS4041NX 60 V, 6.2 A NPN low VCEsat transistor 16 January 2025 Product data sheet 1.General .
NPN low VCEsat transistor in a medium power and flat lead SOT89 (SC-62) Surface-Mounted Device (SMD) plastic package.

PBSS4041NX Features

* Very low collector-emitter saturation voltage VCEsat
* High collector current capability IC and ICM
* High collector current gain (hFE) at high IC
* High energy efficiency due to less heat generation

PBSS4041NX Applications

* Loadswitch
* Battery-driven devices
* Power management
* Charging circuits
* Power switches (e. g. motors, fans) 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC ICM RCEsat collector current peak

📥 Download Datasheet

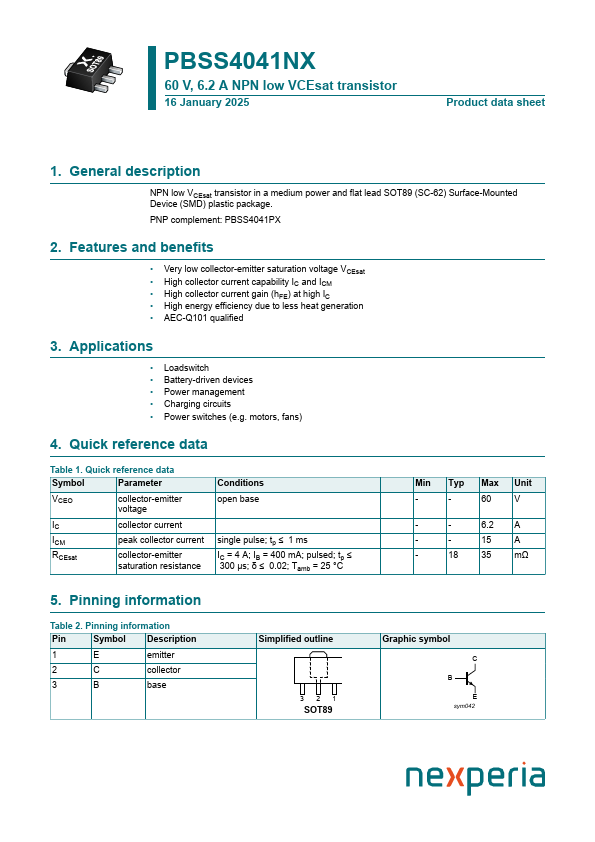

Preview of PBSS4041NX PDF

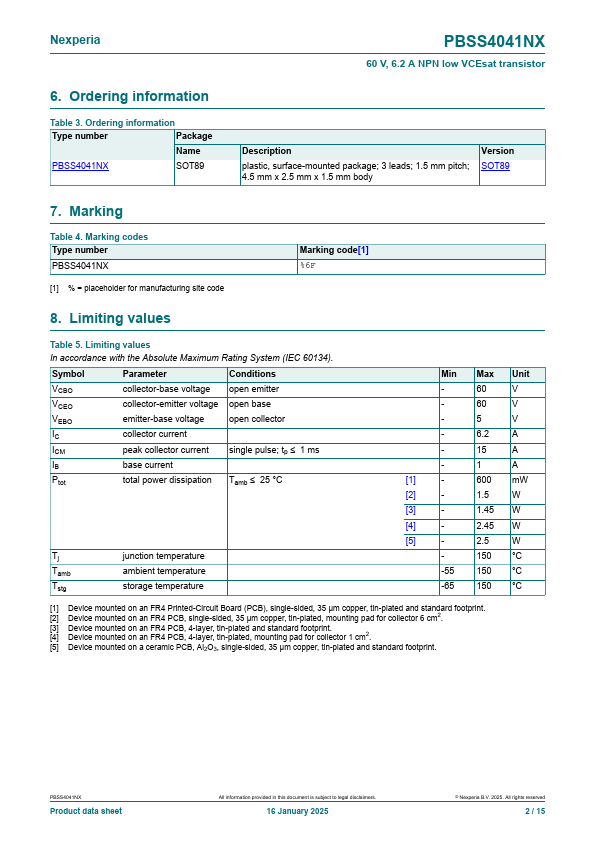

datasheet Preview Page 2 datasheet Preview Page 3
