PBSS8110X-Q - 100V 1A NPN low VCEsat transistor

nexperia

📥 Download Datasheet

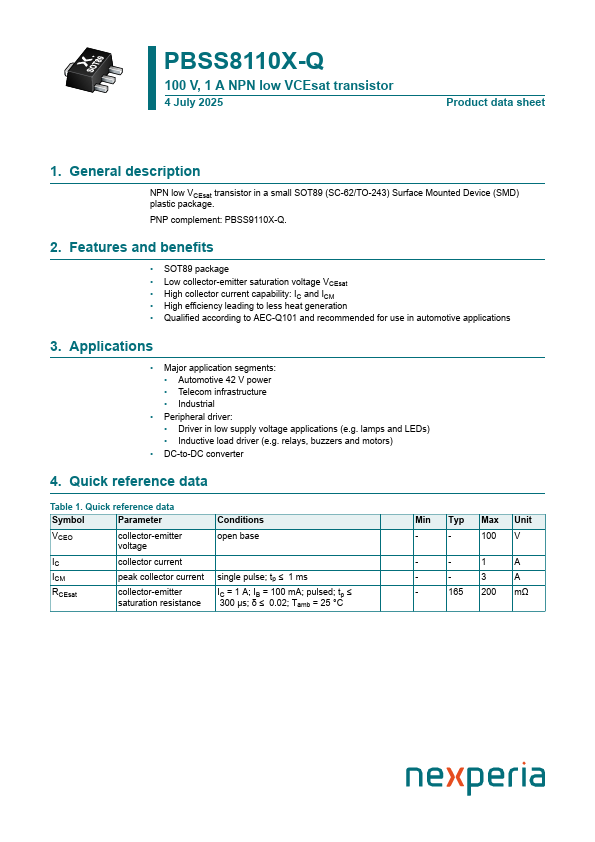

PBSS8110X-Q Datasheet Preview — Preview of PBSS8110X-Q PDF

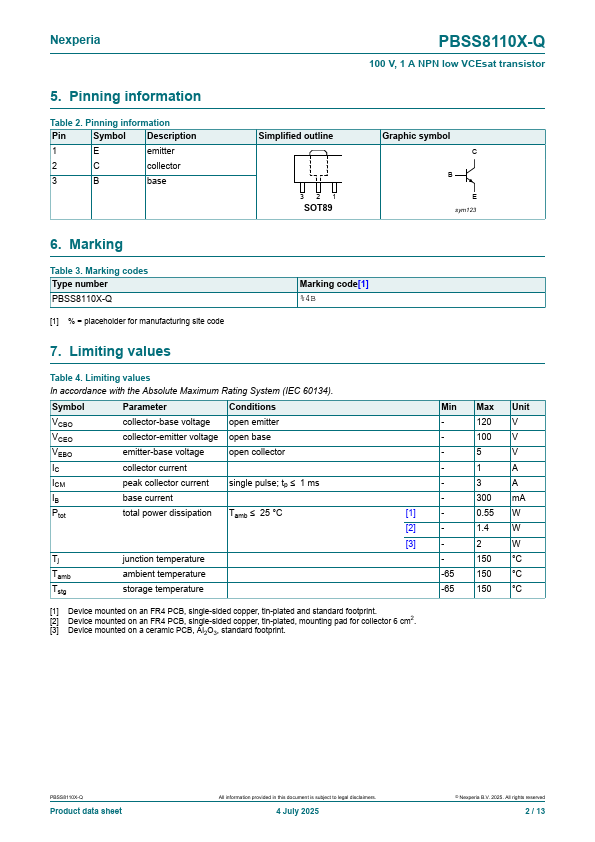

datasheet Preview Page 2

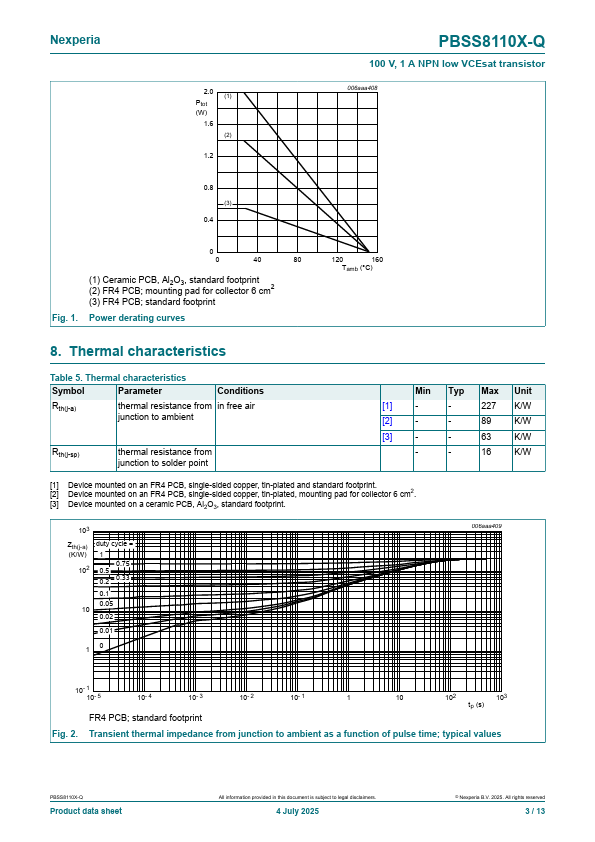

datasheet Preview Page 3

Datasheet Details

Part number	PBSS8110X-Q
Manufacturer	nexperia ↗
File Size	305.39 KB
Description	100V 1A NPN low VCEsat transistor
Datasheet	PBSS8110X-Q-nexperia.pdf

PBSS8110X-Q Product details

Description

NPN low VCEsat transistor in a small SOT89 (SC-62/TO-243) Surface Mounted Device (SMD) plastic package.

Features

SOT89 package.
Low collector-emitter saturation voltage VCEsat.
High collector current capability: IC and ICM.
High efficiency leading to less heat generation.
Qualified according to AEC-Q101 and recommended for use in automotive.
