PBSS2515VS - NPN double transistor

nexperia

📥 Download Datasheet

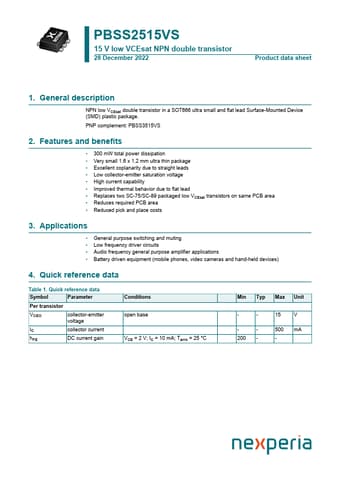

PBSS2515VS Datasheet Preview — Preview of PBSS2515VS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PBSS2515VS
Manufacturer	nexperia ↗
File Size	196.89 KB
Description	NPN double transistor
Datasheet	PBSS2515VS-nexperia.pdf

PBSS2515VS Product details

Description

NPN low VCEsat double transistor in a SOT666 ultra small and flat lead Surface-Mounted Device (SMD) plastic package.

Features

300 mW total power dissipation.
Very small 1.6 x 1.2 mm ultra thin package.
Excellent coplanarity due to straight leads.
Low collector-emitter saturation voltage.
High current capability.
Improved thermal behavior due to flat lead.
Replaces two SC-75/SC-89 packaged low VCEsat transistors on same PCB area.
Reduces required PCB area.
Reduced pick and place costs 3.
