PBSS2515F

low VCEsat NPN transistor

PBSS2515F Features

* Low collector-emitter saturation voltage

* High current capabilities

* Improved thermal behaviour due to flat leads. APPLICATIONS

* General purpose switching and muting

* Low frequency driver circuits

* LCD backlighting

* Audio frequency gene

PBSS2515F General Description

NPN low VCEsat transistor in a SC-89 (SOT490) plastic package. PNP complement: PBSS3515F. MARKING TYPE NUMBER PBSS2515F 2A MARKING CODE Fig.1 handbook, halfpage PBSS2515F QUICK REFERENCE DATA SYMBOL VCEO IC ICM RCEsat PINNING PIN 1 2 3 base emitter collector DESCRIPTION PARAMETER collector-emitter .

PBSS2515F Datasheet (92.70 KB)

Preview of PBSS2515F PDF

Datasheet Details

Part number:

PBSS2515F

Manufacturer:

NXP ↗

File Size:

92.70 KB

Description:

Low vcesat npn transistor.

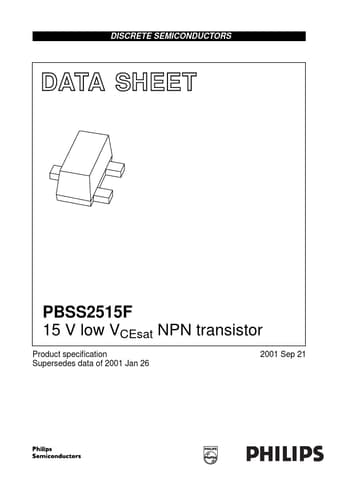

www.DataSheet4U.com DISCRETE SEMICONDUCTORS DATA SHEET M3D425 PBSS2515F 15 V low VCEsat NPN transistor Product speciļ¬cation Supersedes data of 200.
