PBSS2515VS Datasheet - NXP

NPN Transistor

PBSS2515VS Features

* 300 mW total power dissipation

* Very small 1.6 x 1.2 mm ultra thin package

* Excellent coplanarity due to straight leads

* Low collector-emitter saturation voltage

* High current capability

* Improved thermal behaviour due to flat lead

* Rep

PBSS2515VS General Description

TR1; TR2 TR1; TR2 TR1; TR2 PARAMETER collector-emitter voltage peak collector current equivalent on-resistance MAX. 15 1 <500 UNIT V A mΩ 5 4 6 5 4 TR2 TR1 DESCRIPTION NPN low VCEsat double transistor in a SOT666 plastic package. PNP complement: PBSS3515VS. MARKING TYPE NUMBER PBSS2515VS MARK.

PBSS2515VS Datasheet (78.60 KB)

PBSS2515VS Datasheet Preview — Preview of PBSS2515VS PDF

Datasheet Details

Part number:

PBSS2515VS

Manufacturer:

NXP ↗

File Size:

78.60 KB

Description:

Npn transistor.

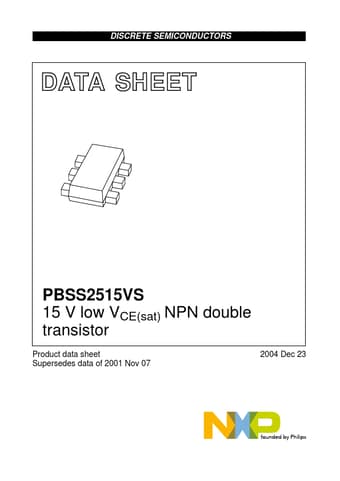

DISCRETE SEMICONDUCTORS DATA SHEET M3D744 PBSS2515VS 15 V low VCEsat NPN double transistor Product speciﬁcation Supersedes data of 2001 Sep 13 2001.
