PBSS2515YPN

low VCE(sat) NPN/PNP transistor

PBSS2515YPN Features

* Low collector-emitter saturation voltage

* High current capability

* Replaces two SC-70 packaged low VCEsat transistors on same PCB area

* Reduces required PCB area

* Reduced pick and place costs. APPLICATION

* General purpose switching and muting

PBSS2515YPN General Description

NPN/PNP low VCEsat transistor pair in a SC-88 plastic package. MARKING TYPE NUMBER PBSS2515YPN Note 1.
* = -: made in Hong Kong
* = t: made in Malaysia
* = W: made in China. ORDERING INFORMATION PACKAGE TYPE NUMBER NAME PBSS2515YPN SC-88 DESCRIPTION plastic surface mounted package; 6 lea.

PBSS2515YPN Datasheet (124.96 KB)

Preview of PBSS2515YPN PDF

Datasheet Details

Part number:

PBSS2515YPN

Manufacturer:

NXP ↗

File Size:

124.96 KB

Description:

Low vce(sat) npn/pnp transistor.

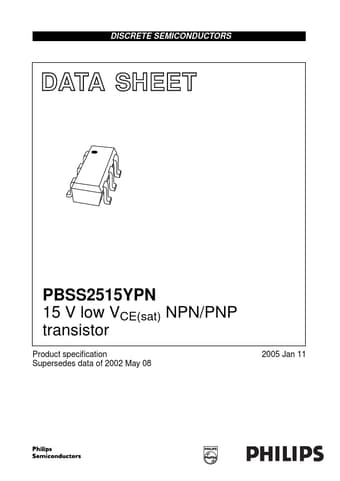

www.DataSheet4U.com DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage MBD128 PBSS2515YPN 15 V low VCE(sat) NPN/PNP transistor Product speciļ¬cation.
