PBSS2515VPN - NPN/PNP Transistor

Product Overview

NXP

📥 Download Datasheet

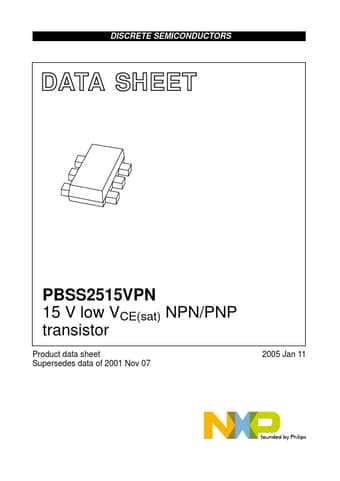

PBSS2515VPN NPN/PNP Transistor by NXP - Datasheet Preview — Datasheet preview – PBSS2515VPN

Datasheet Details

Part number	PBSS2515VPN
Manufacturer	NXP
File Size	98.15 KB
Description	NPN/PNP Transistor
Datasheet	PBSS2515VPN Datasheet
Additional preview pages of the PBSS2515VPN datasheet.

Product details

Description

NPN/PNP low VCEsat transistor pair in a SOT666 plastic package.

Features

300 mW total power dissipation.
Very small 1.6 × 1.2 mm ultra thin package.
Excellent coplanarity due to straight leads.
Low collector-emitter saturation voltage.
High current capability.
Improved thermal behaviour due to flat lead.
Replaces two SC75/SC89 packaged low VCEsat transistors on same PCB area.
Reduces required PCB area.
Reduced pick and place costs.
