PBSS2540M-Q - 40V 0.5A NPN low VCEsat transistor

nexperia

📥 Download Datasheet

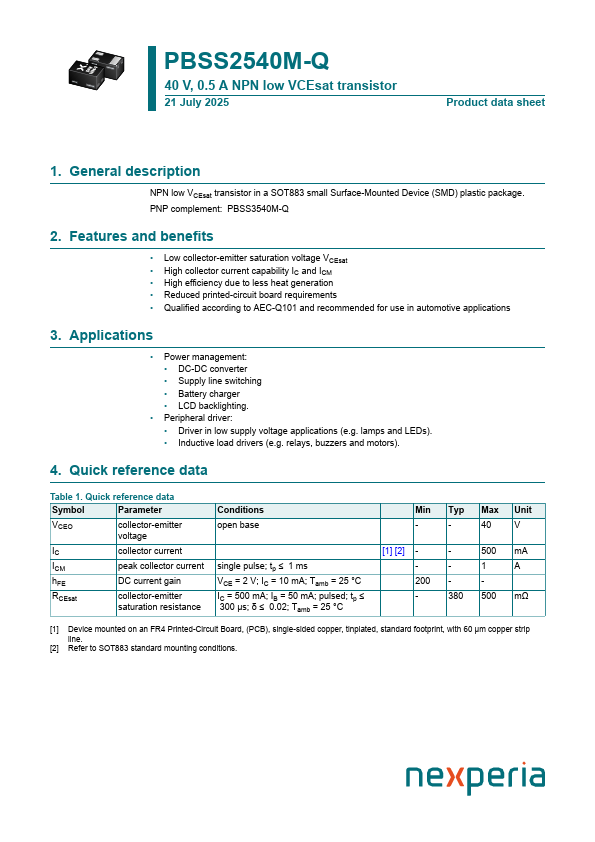

PBSS2540M-Q Datasheet Preview — Preview of PBSS2540M-Q PDF

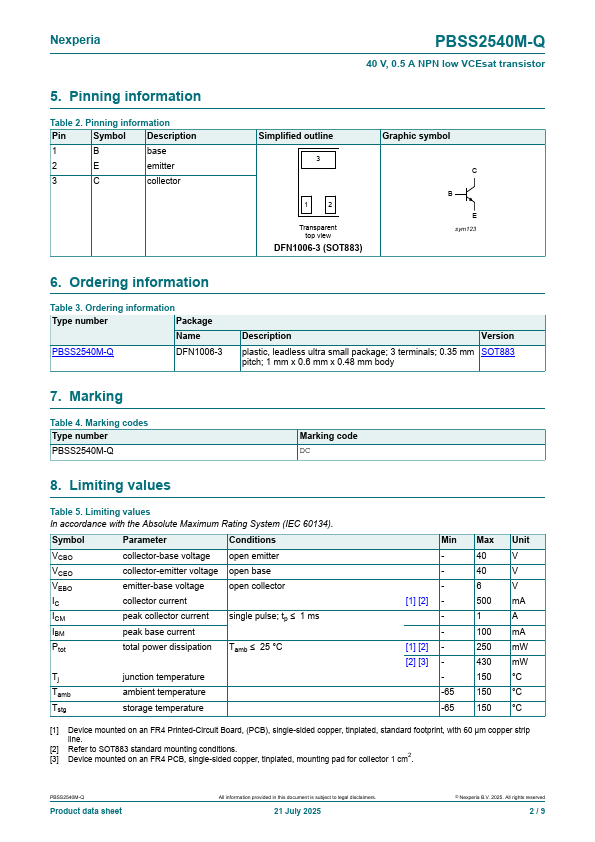

datasheet Preview Page 2

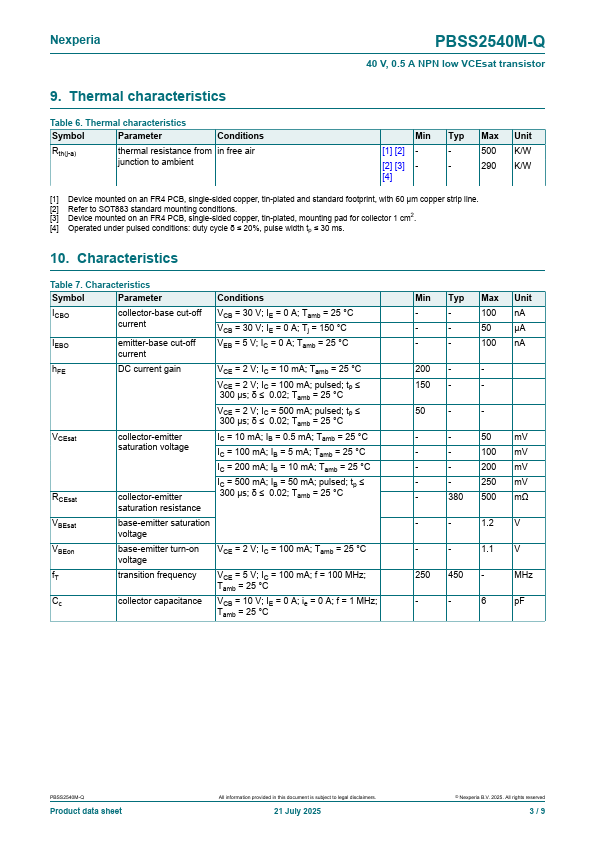

datasheet Preview Page 3

Datasheet Details

Part number	PBSS2540M-Q
Manufacturer	nexperia
File Size	204.79 KB
Description	40V 0.5A NPN low VCEsat transistor
Datasheet	PBSS2540M-Q-nexperia.pdf

PBSS2540M-Q Product details

Description

NPN low VCEsat transistor in a SOT883 small Surface-Mounted Device (SMD) plastic package.

Features

Low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM.
High efficiency due to less heat generation.
Reduced printed-circuit board requirements.
Qualified according to AEC-Q101 and recommended for use in automotive.
