PDTC114YMB, NPN resistor-equipped transistor

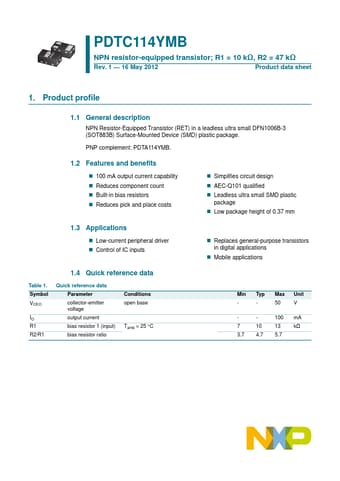

SOT883B PDTC114YMB NPN resistor-equipped transistor; R1 = 10 kΩ, R2 = 47 kΩ Rev.1 * 16 May 2012 Product data sheet 1.Product profile 1.
NPN Resistor-Equipped Transistor (RET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package.

datasheet Preview Page 1 from Datasheet4u.com

PDTC114YMB-nexperia.pdf

PDTC114YMB Datasheet Preview — Preview of PDTC114YMB PDF

Datasheet Details

Part number:

PDTC114YMB

Manufacturer:

nexperia ↗

File Size:

704.85 KB

Description:

NPN resistor-equipped transistor

Features

* 100 mA output current capability
* Reduces component count
* Built-in bias resistors
* Reduces pick and place costs
* Simplifies circuit design
* AEC-Q101 qualified
* Leadless ultra small SMD plastic package

Applications

* Low-current peripheral driver
* Control of IC inputs
* Replaces general-purpose transistors in digital applications
* Mobile applications 1.4 Quick reference data Table 1. Symbol VCEO IO R1 R2/R1 Quick reference data Parameter collector-emitter voltage output current bias resis
