PDTC114YQA Datasheet - nexperia

NPN resistor-equipped transistor

PDTC114YQA Features

* 100 mA output current capability

* Built-in bias resistors

* Simplifies circuit design

* Reduces component count

* Reduced pick and place costs

* Low package height of 0.37 mm

* AEC-Q101 qualified

* Suitable for Automatic Optical Inspection (AOI) of solder joint 1

PDTC114YQA General Description

100 mA NPN Resistor-Equipped Transistor (RET) family in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads. Table 1. Product overview Type number R1 PDTC143XQA 4.7 k PDTC123JQA 2.2 k PDTC143ZQA 4.7 k PDTC114YQA .

PDTC114YQA Datasheet (2.64 MB)

PDTC114YQA Datasheet Preview — Preview of PDTC114YQA PDF

Datasheet Details

Part number:

PDTC114YQA

Manufacturer:

nexperia ↗

File Size:

2.64 MB

Description:

Npn resistor-equipped transistor.

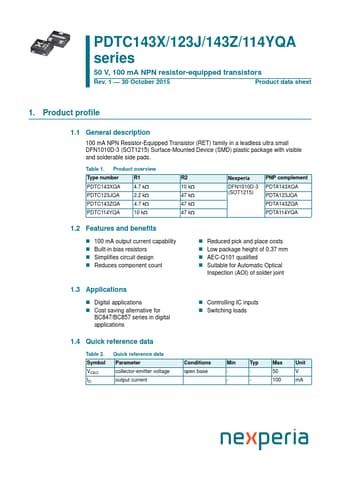

PDTC143X/123J/143Z/114YQA series 50 V, 100 mA NPN resistor-equipped transistors Rev. 1 30 October 2015 Product data sheet 1. Product pr.
