PDTC114YU-Q - NPN Transistor

nexperia

📥 Download Datasheet

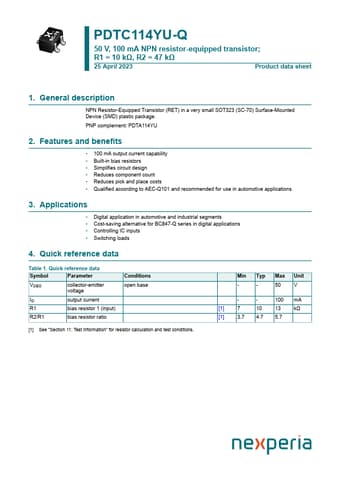

PDTC114YU-Q Datasheet Preview — Preview of PDTC114YU-Q PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PDTC114YU-Q
Manufacturer	nexperia ↗
File Size	220.95 KB
Description	NPN Transistor
Datasheet	PDTC114YU-Q-nexperia.pdf

PDTC114YU-Q Product details

Description

NPN Resistor-Equipped Transistor (RET) in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

Features

100 mA output current capability.
Built-in bias resistors.
Simplifies circuit design.
Reduces component count.
Reduces pick and place costs.
Qualified according to AEC-Q101 and recommended for use in automotive.
