PDTC114YT-Q - 100mA NPN resistor-equipped transistor

nexperia

📥 Download Datasheet

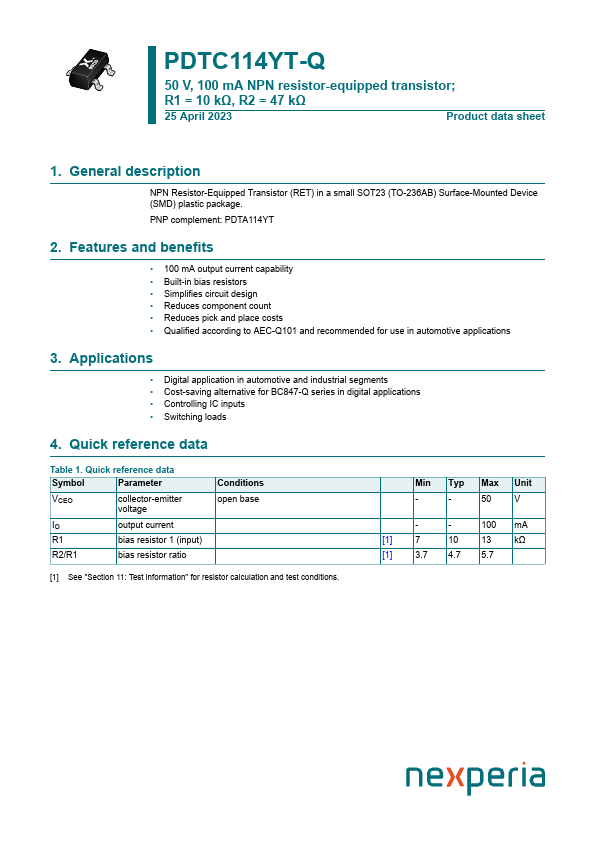

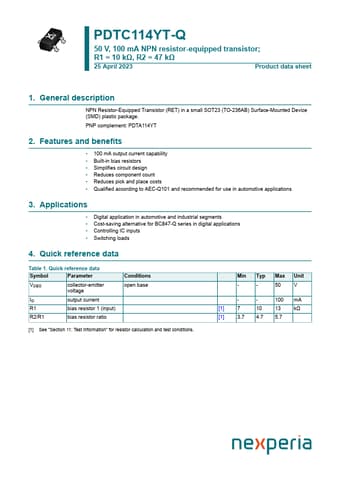

PDTC114YT-Q Datasheet Preview — Preview of PDTC114YT-Q PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PDTC114YT-Q
Manufacturer	nexperia ↗
File Size	224.32 KB
Description	100mA NPN resistor-equipped transistor
Datasheet	PDTC114YT-Q-nexperia.pdf

PDTC114YT-Q Product details

Description

NPN Resistor-Equipped Transistor (RET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

Features

100 mA output current capability.
Built-in bias resistors.
Simplifies circuit design.
Reduces component count.
Reduces pick and place costs.
Qualified according to AEC-Q101 and recommended for use in automotive.
