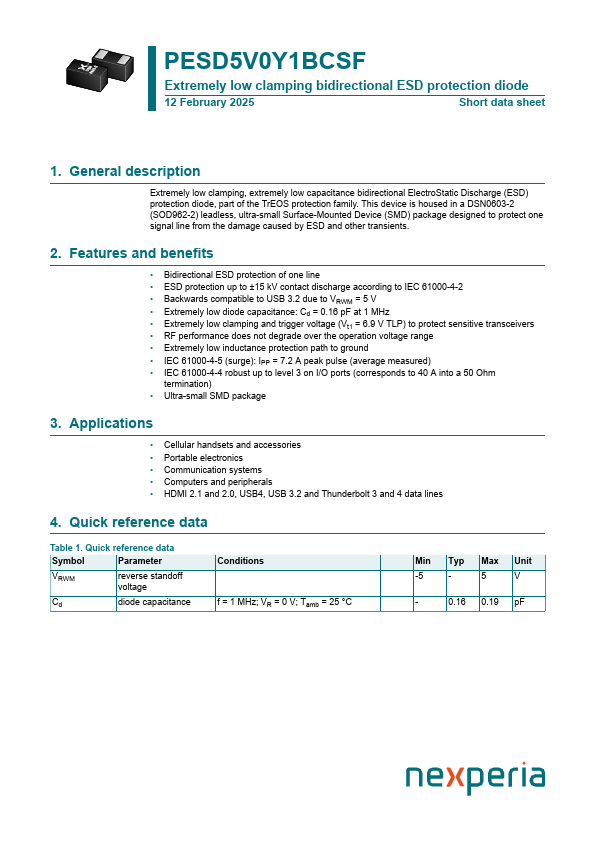

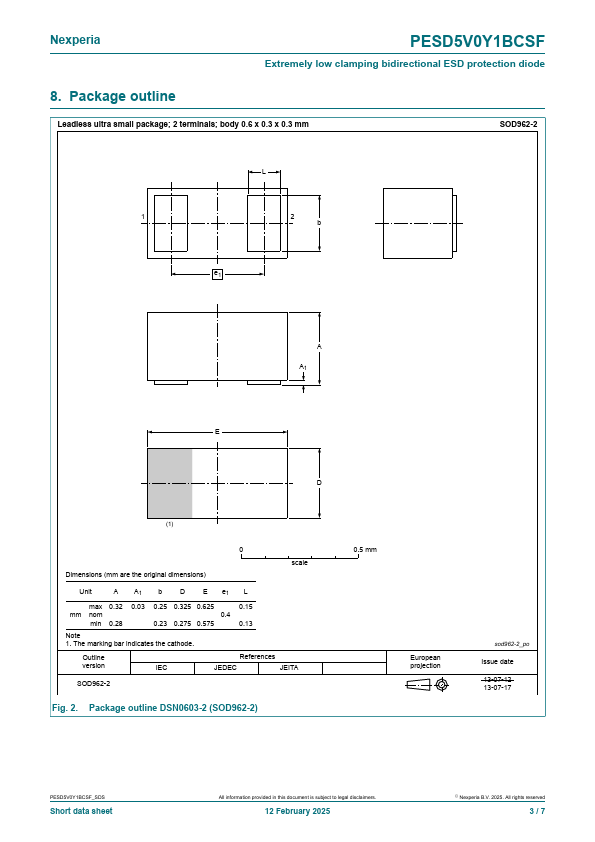

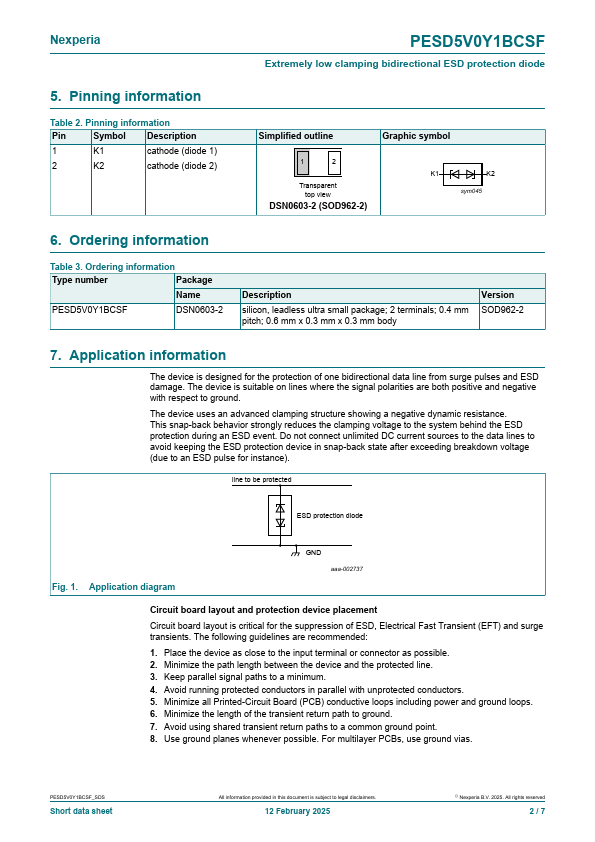

PESD5V0Y1BCSF - Extremely low clamping bidirectional ESD protection diode

nexperia

Datasheet Details

Part number	PESD5V0Y1BCSF
Manufacturer	nexperia ↗
File Size	148.39 KB
Description	Extremely low clamping bidirectional ESD protection diode
Datasheet	PESD5V0Y1BCSF-nexperia.pdf

Extremely low clamping, extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

Bidirectional ESD protection of one line.
ESD protection up to ±15 kV contact discharge according to IEC 61000-4-2.
Backwards compatible to USB 3.2 due to VRWM = 5 V.
Extremely low diode capacitance: Cd = 0.16 pF at 1 MHz.
Extremely low clamping and trigger voltage (Vt1 = 6.9 V TLP) to protect sensitive transceivers.
RF performance does not degrade over the operation voltage range.
Extremely low inductance protection path to ground.
