PMDXB600UNEL, dual N-channel MOSFET

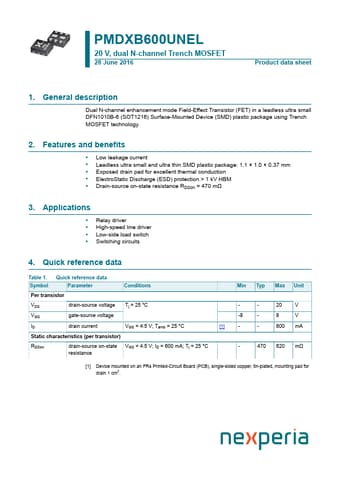

PMDXB600UNEL 20 V, dual N-channel Trench MOSFET 28 June 2016 Product data sheet 1.General .
Dual N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010B-6 (SOT1216) Surface-Mounted Device (SMD) plastic pack.

datasheet Preview Page 1 from Datasheet4u.com

PMDXB600UNEL-nexperia.pdf

PMDXB600UNEL Datasheet Preview — Preview of PMDXB600UNEL PDF

Datasheet Details

Part number:

PMDXB600UNEL

Manufacturer:

nexperia ↗

File Size:

734.98 KB

Description:

dual N-channel MOSFET

Features

* Low leakage current
* Leadless ultra small and ultra thin SMD plastic package: 1.1 × 1.0 × 0.37 mm
* Exposed drain pad for excellent thermal conduction
* ElectroStatic Discharge (ESD) protection > 1 kV HBM
* Drain-source on-state resistance RDSon = 470 mΩ 3

Applications

* Relay driver
* High-speed line driver
* Low-side load switch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Per transistor VDS drain-source voltage Tj = 25 °C VGS gate-source voltage ID drain current
