PMPB20SNA - N-channel Trench MOSFET

PMPB20SNA Description

PMPB20SNA 40 V, N-channel Trench MOSFET 19 July 2017 Preliminary data sheet 1.General .
N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package.

PMPB20SNA Features

* Extended temperature range Tj = 175 °C
* Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
* Tin-plated 100 % solderable side pads for optical solder inspection
* Trench MOSFET technology

PMPB20SNA Applications

* Relay driver
* High-speed line driver
* Low-side load switch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage VGS gate-source voltage ID drain current Static characteristics RDSon drain-so

📥 Download Datasheet

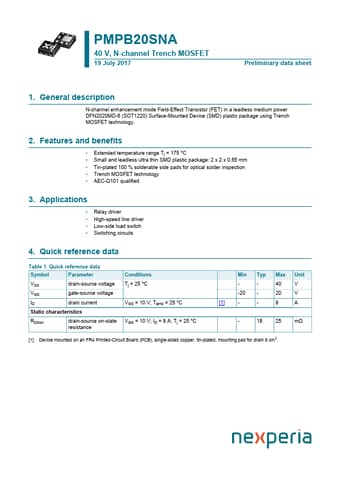

Preview of PMPB20SNA PDF
