PMPB29XPE, single P-channel Trench MOSFET

PMPB29XPE 20 V, single P-channel Trench MOSFET 5 December 2012 Product data sheet 1.Product profile 1.1 General .
P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package.

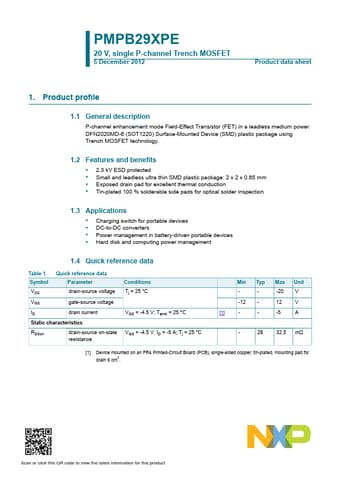

datasheet Preview Page 1 from Datasheet4u.com

PMPB29XPE-NXP.pdf

PMPB29XPE Datasheet Preview — Preview of PMPB29XPE PDF

Datasheet Details

Part number:

PMPB29XPE

Manufacturer:

NXP ↗

File Size:

232.28 KB

Description:

single P-channel Trench MOSFET

Features

* 2.3 kV ESD protected
* Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
* Exposed drain pad for excellent thermal conduction

Applications

* Charging switch for portable devices
* DC-to-DC converters
* Power management in battery-driven portable devices
* Hard disk and computing power management 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage VGS gat
