PF6116

Green PWM Current-Mode Controller

PF6116 Features

* CCM/Valley Switching Operation

* High Driving Capability +200mA/-600mA

* Adjustable OVP (Over Voltage Protection)

* Accurate OLP (Over Load Protection)

* VCC OVP (Internal OVP)

* AC Brown in/out Protection

* DEM/CS Open/Short Protection

* Internal Slope Compensation

PF6116 General Description

The PF6116 provides a CCM/valley switching mixed mode operation for better efficiency performance. The operation mode stays at CCM at heavy load, and switch to valley switching at light load. Using Power Forest patented technology, several function are integrated: OVP, OLP, SCP and AC brown in/out f.

PF6116 Datasheet (449.82 KB)

Preview of PF6116 PDF

Datasheet Details

Part number:

PF6116

Manufacturer:

powerforest

File Size:

449.82 KB

Description:

Green pwm current-mode controller.

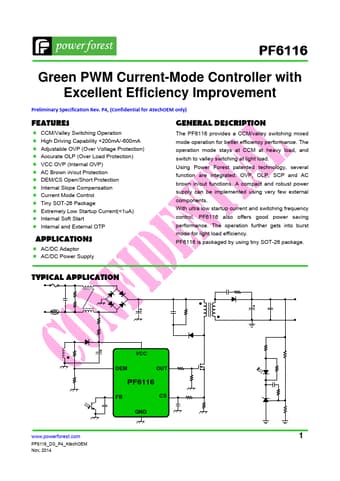

PF6116 Green PWM Current-Mode Controller with Excellent Efficiency Improvement Preliminary Specification Rev. P4, (Confidential for AtechOEM only) .
