Part number: TGL2201
Manufacturer: qorvo
File Size: 289.90KB
Download: 📄 Datasheet
Description: Wideband Dual Stage VPIN Limiter
* Frequency Range: 2
– 25 GHz
* Insertion Loss: < 1 dB
* Return Loss: > 12 dB
* Input Power CW Survivability up to 5 W
* Flat Leakage:.
* Receive Chain Protection
* Commercial and Military Radar

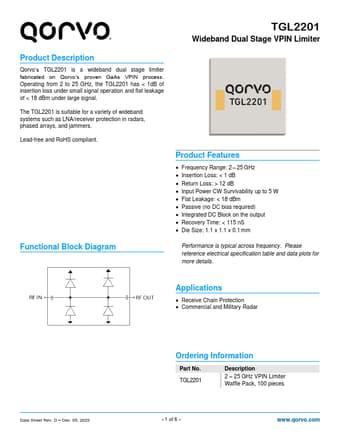

Data Sheet Rev. D
– Dec. 05, 2023
O.
Qorvo’s TGL2201 is a wideband dual stage limiter fabricated on Qorvo’s proven GaAs VPIN process. Operating from 2 to 25 GHz, the TGL2201 has < 1dB of insertion loss under small signal operation and flat leakage of < 18 dBm under large signal.
The TG.
