AO4771L - 30V P-Channel MOSFET

Alpha & Omega Semiconductors

General Description

AO4771L uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

A Schottky diode is provided to facilitate the implementation of a bidirectional blocking switch,or for "standard buck" DC-DC conversion applications.

📥 Download Datasheet

AO4771L 30v p-channel mosfet by Alpha & Omega Semiconductors - Datasheet Preview

Datasheet Details

Part number	AO4771L
Manufacturer	Alpha & Omega Semiconductors
File Size	251.68 KB
Description	30V P-Channel MOSFET
Datasheet	AO4771L Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4771	P-Channel MOSFET	Kexin
AO4771	30V Dual P-Channel MOSFET	VBsemi
AO4702	N-Channel MOSFET	Kexin
AO4704	N-Channel MOSFET	Kexin
AO4705	P-Channel MOSFET	Kexin

Other Datasheets by Alpha & Omega Semiconductors

Part Number	Description
AO4700	N-Channel Enhancement Mode Field Effect Transistor
AO4700	N-Channel MOSFET
AO4701	P-Channel Enhancement Mode Field Effect Transistor
AO4702	N-Channel Enhancement Mode Field Effect Transistor
AO4703	P-Channel Enhancement Mode Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

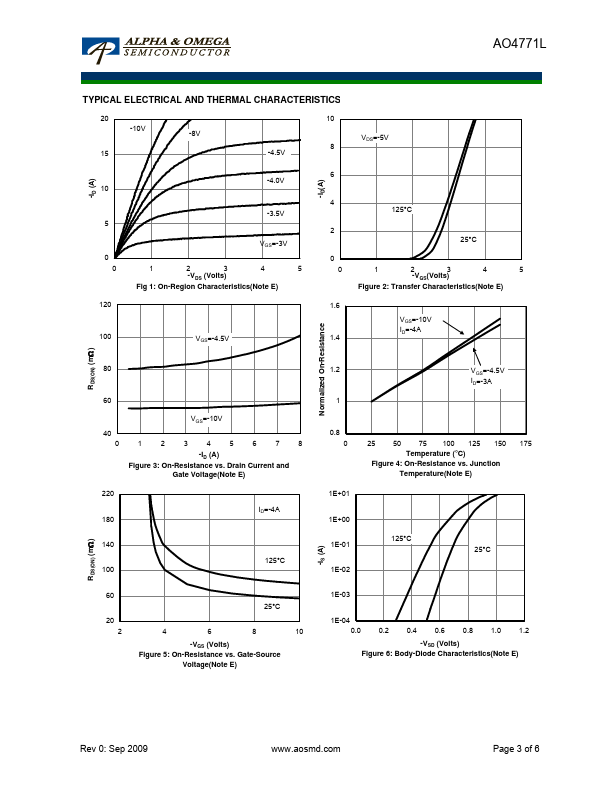

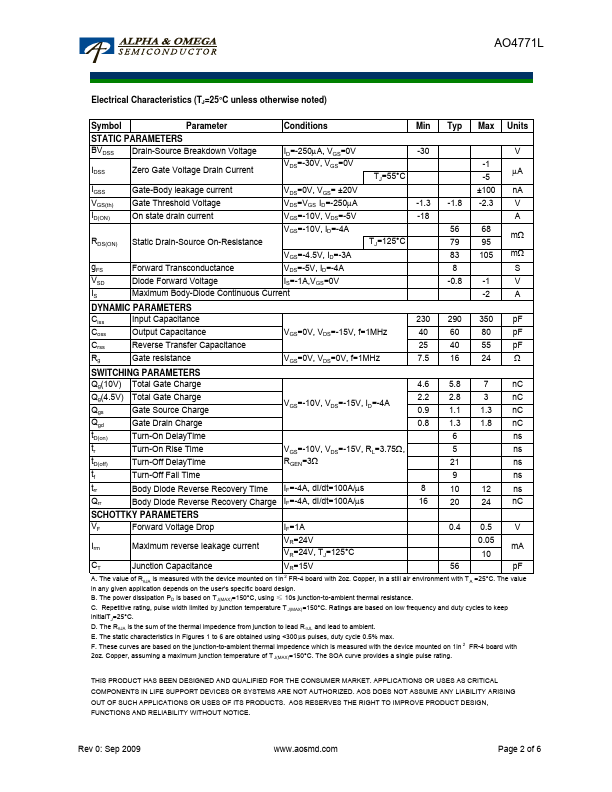

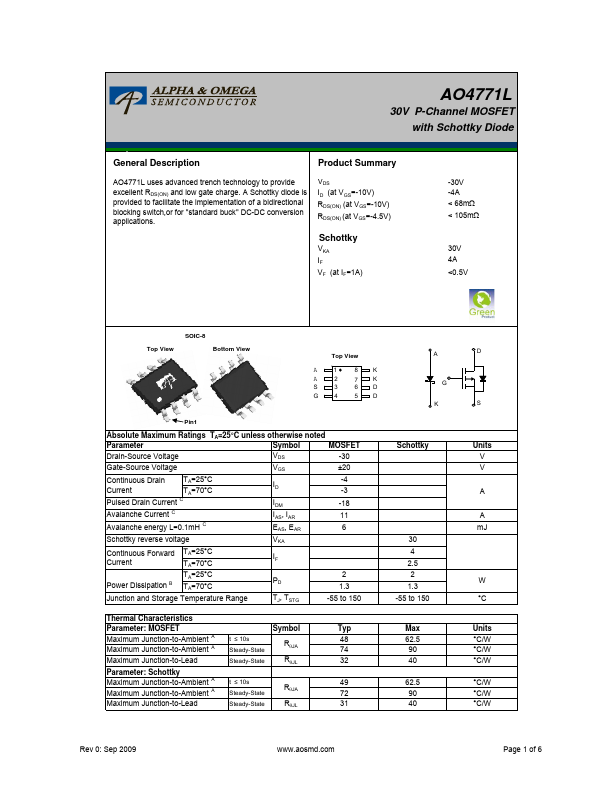

AO4771L 30V P-Channel MOSFET with Schottky Diode General Description Product Summary AO4771L uses advanced trench technology to provide excellent RDS(ON) and low gate charge. A Schottky diode is provided to facilitate the implementation of a bidirectional blocking switch,or for "standard buck" DC-DC conversion applications. VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS=-4.5V) Schottky VKA IF VF (at IF=1A) -30V -4A < 68mΩ < 105mΩ 30V 4A <0.
