AO4807 - 30V Dual P-Channel MOSFET

Datasheet Summary

Description

The AO4807 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge.

This device is suitable for use as a load switch or in PWM applications.

📥 Download Datasheet

Datasheet preview – AO4807

Datasheet Details

Part number AO4807
Manufacturer Alpha & Omega Semiconductors
File Size 618.10 KB
Description 30V Dual P-Channel MOSFET
Datasheet download datasheet AO4807 Datasheet
Additional preview pages of the AO4807 datasheet.

📁 Similar Datasheet

  • AO4800 - Dual N-Channel 30V MOSFET (VBsemi)
  • AO4801 - Dual P-Channel 30V MOSFET (VBsemi)
  • AO4805 - Dual P-Channel MOSFET (VBsemi)
  • AO4811 - Dual P-Channel MOSFET (FreesCale)
  • AO4812 - Dual N-Channel 30V MOSFET (VBsemi)
  • AO4813 - Dual P-Channel MOSFET (VBsemi)
  • AO4815 - Dual P-Channel 30V MOSFET (VBsemi)
  • AO4815 - Dual P-Channel MOSFET (Kexin)
  • AO4817-HF - Dual P-Channel MOSFET (Kexin)
  • AO4818 - Dual N-Channel MOSFET (VBsemi)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text

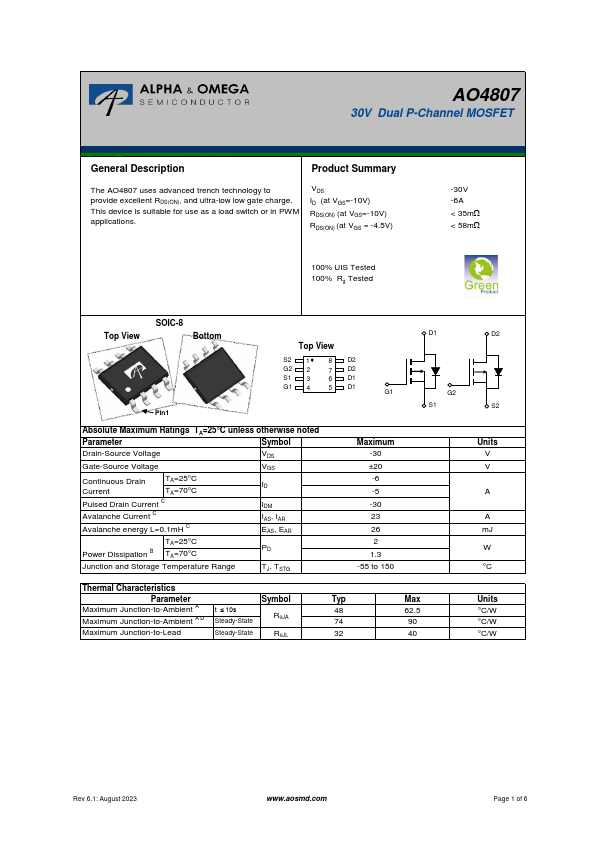

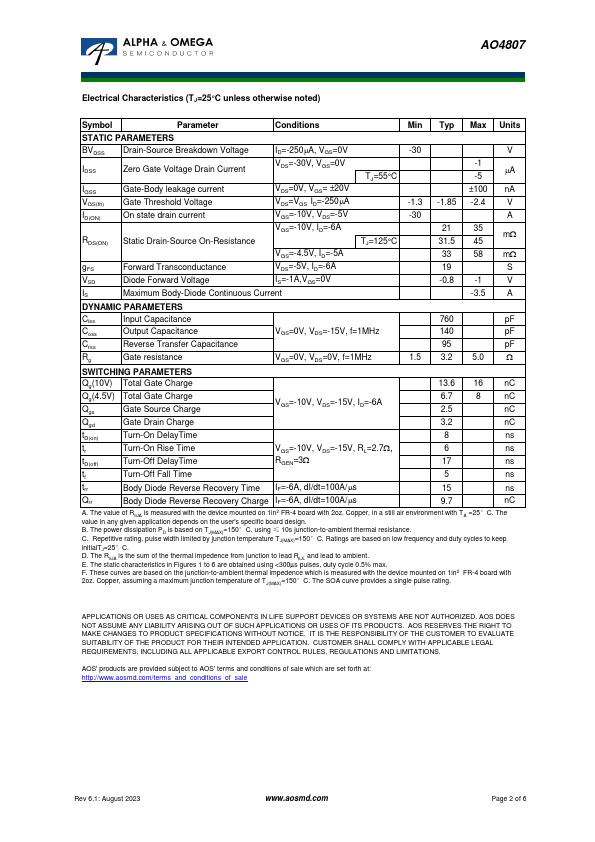

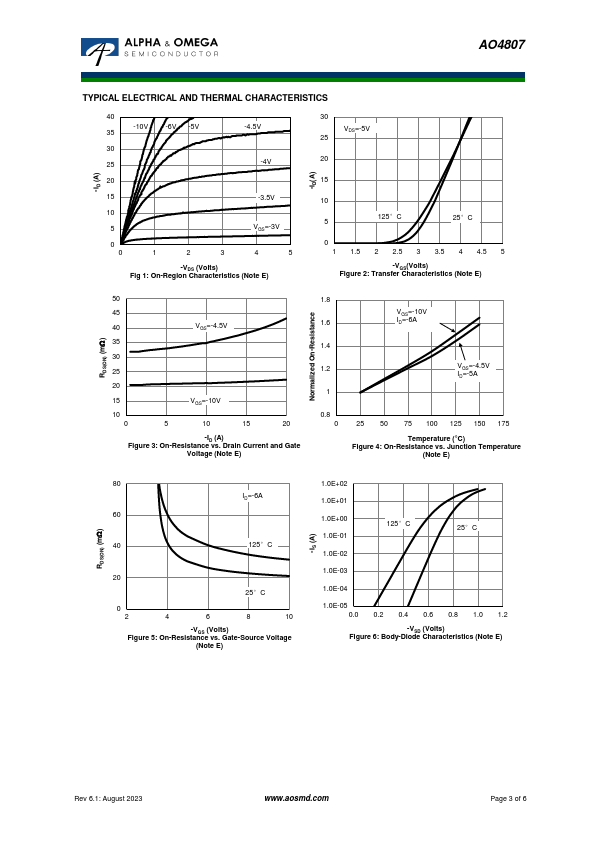

AO4807 30V Dual P-Channel MOSFET General Description Product Summary The AO4807 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch or in PWM applications. VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS = -4.5V) 100% UIS Tested 100% Rg Tested -30V -6A < 35mΩ < 58mΩ Top View SOIC-8 Bottom Top View S2 1 G2 2 S1 3 G1 4 8 7 6 5 D2 D2 D1 D1 G1 Pin1 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C Current TA=70°C Pulsed Drain Current C Avalanche Current C Avalanche energy L=0.
