Datasheet Summary
SMD Type

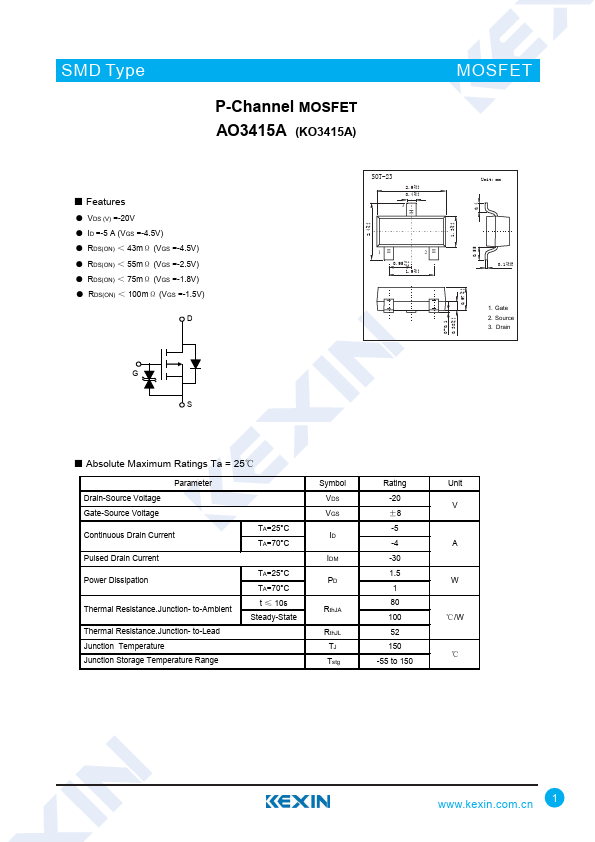

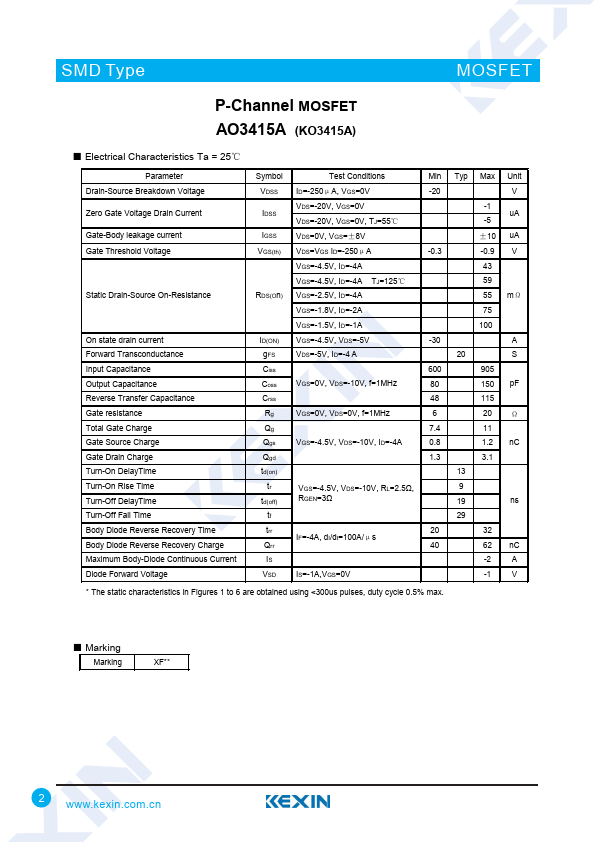

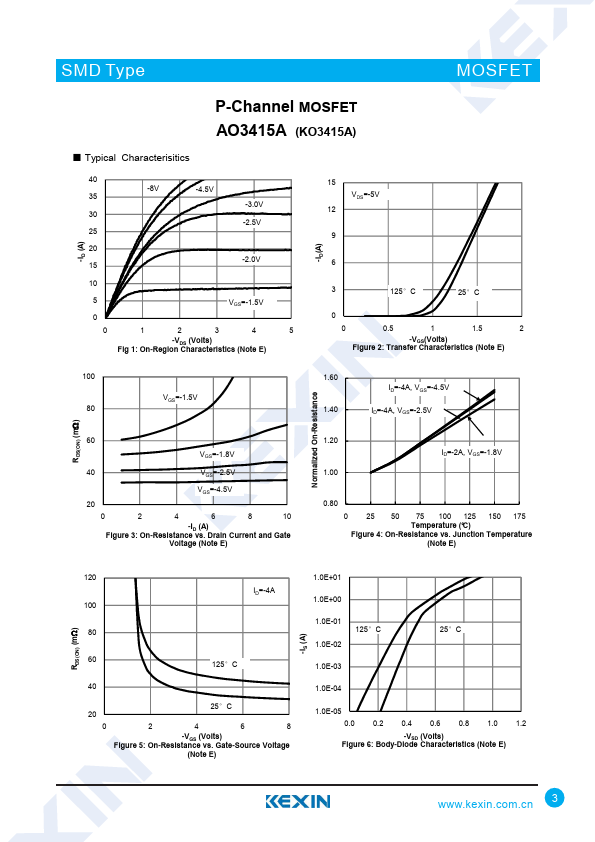

P-Channel MOSFET AO3415A (KO3415A)
MOSFET
- Features
- VDS (V) =-20V
- ID =-5 A (VGS =-4.5V)
- RDS(ON) ＜ 43mΩ (VGS =-4.5V)
- RDS(ON) ＜ 55mΩ (VGS =-2.5V)
- RDS(ON) ＜ 75mΩ (VGS =-1.8V)
- RDS(ON) ＜ 100mΩ (VGS =-1.5V)
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1 +0.05 -0.01
1. Gate 2. Source 3. Drain
0-0.1 +0.1 0.38
-0.1
-...
