PESD3V3L2BT

Manufacturer: Kexin Semiconductor

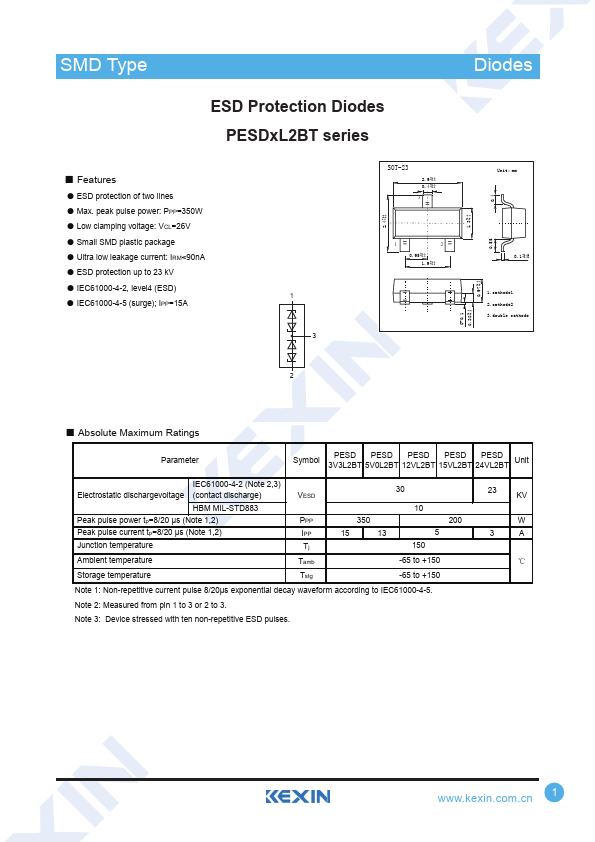

PESD3V3L2BT datasheet preview

Datasheet Details

Part number	PESD3V3L2BT
Datasheet	PESD3V3L2BT-Kexin.pdf
File Size	296.10 KB
Manufacturer	Kexin Semiconductor
Description	ESD Protection Diodes

PESD3V3L2BT Overview

SMD Type TransDisiotodress ESD Protection Diodes PESDxL2BT series.

PESD3V3L2BT Key Features

ESD protection of two lines
Max. peak pulse power: PPP=350W
Low clamping voltage: VCL=26V
Small SMD plastic package
Ultra low leakage current: IRM<90nA
ESD protection up to 23 kV
IEC61000-4-2, level4 (ESD)
IEC61000-4-5 (surge); IPP=15A
