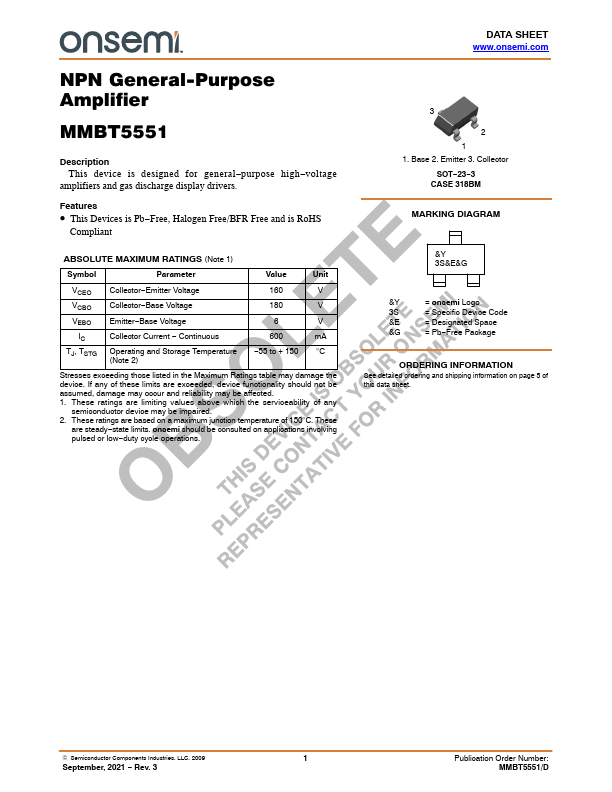

MMBT5551 - NPN Amplifier

General Description

This device is designed for general-purpose high-voltage amplifiers and gas discharge display drivers.

Marking: 3S 1.

Base 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT5551 NPN Transistor Formosa MS
MMBT5551 Silicon NPN Transistor NTE
MMBT5551 SMD High Voltage Transistor TAITRON
MMBT5551 NPN Transistor GOOD-ARK
MMBT5551 NPN Plastic Encapsulated Transistor SeCoS

Other Datasheets by onsemi

Part Number Description
MMBT5551L High Voltage Transistors
MMBT5551M3 NPN High Voltage Transistor
MMBT5550L High Voltage Transistors
MMBT5087 PNP General Purpose Amplifier
MMBT5087L Low Noise Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

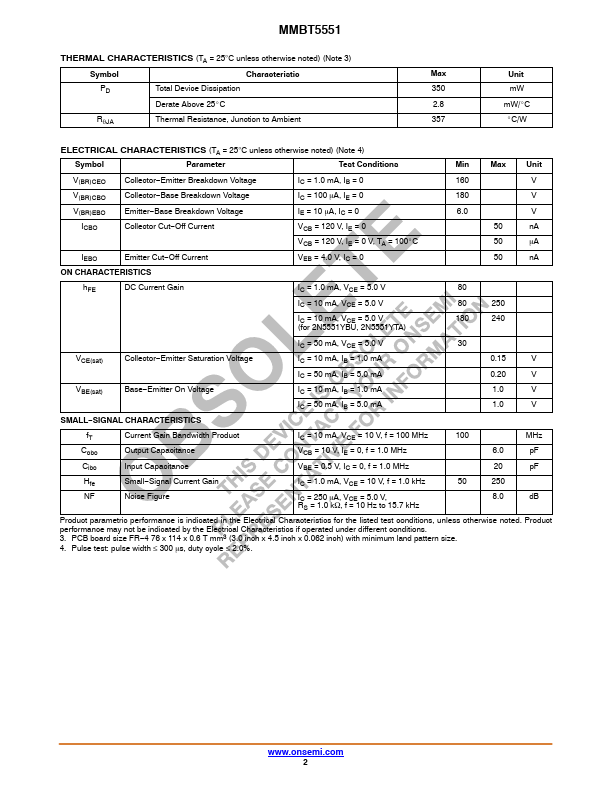

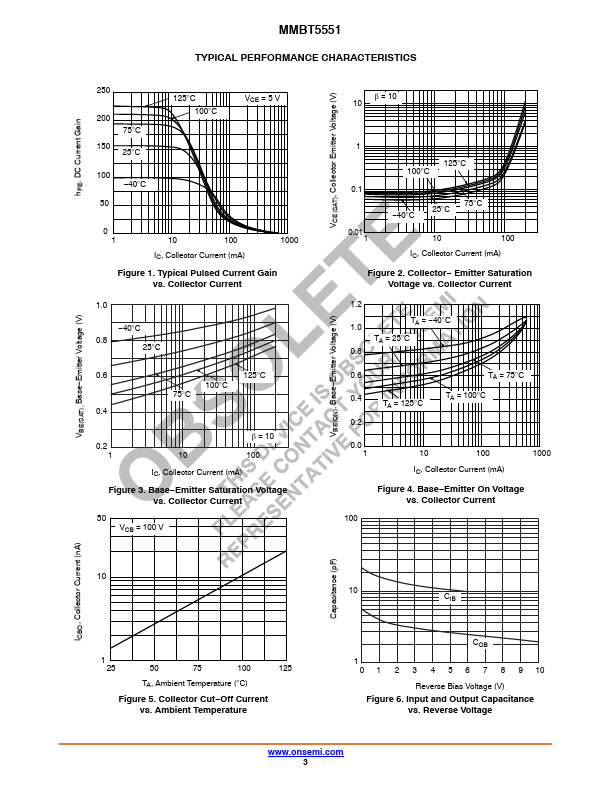

2N5551 / MMBT5551 — NPN General-Purpose Amplifier March March 20188 2N5551 / MMBT5551 NPN General-Purpose Amplifier Description This device is designed for general-purpose high-voltage amplifiers and gas discharge display drivers. 2N5551 MMBT5551 3 TO-92 2 1 SOT-23 Marking: 3S 1. Base 2. Emitter 3. Collector Ordering Information(1) Part Number 2N5551TA 2N5551TFR 2N5551TF 2N5551BU MMBT5551 Top Mark 5551 5551 5551 5551 3S Package TO-92 3L TO-92 3L TO-92 3L TO-92 3L SOT-23 3L Note: 1. Suffix “-C” means Center Collector in 2N5551 (1. Emitter 2. Collector 3. Base) Suffix “-Y” means hFE 180~240 in 2N5551 (Test condition: IC = 10 mA, VCE = 5.0 V) Packing Method Ammo Tape and Reel Tape and Reel Bulk Tape and Reel © 2009 Semiconductor Components Industries, LLC.
