ESDALC6V1W5 - QUAD TRANSIL ARRAY FOR ESD PROTECTION

Description

The ESDALC6V1W5 is a 4-bit wide monolithic suppressor which is designed to protect component connected to data and transmission lines against ESD.

It clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients.

Features

  • 4 unidirectional.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ESDALC6V1-1BM2 TVS Diode Leiditech
ESDALC6V1-1BT2 Single line low capacitance Transil ST Microelectronics
ESDALC6V1-1BU2 Single-line low capacitance ST Microelectronics
ESDALC6V1-1U2 TVS Clamping Arrays ST Microelectronics
ESDALC6V1-5T6 TVS Clamping Arrays ST Microelectronics

Other Datasheets by STMicroelectronics

Part Number Description
ESDALC6V1-1BM2 Single line low capacitance
ESDALC6V1-1M2 Single line low capacitance Transil
ESDALC6V1-5M6 (ESDALC6V1xxM6) 4 and 5 line low capacitance TRANSIL array
ESDALC6V1-5P6 ESD protection
ESDALC6V1C2 Quad low capacitance TRANSIL array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

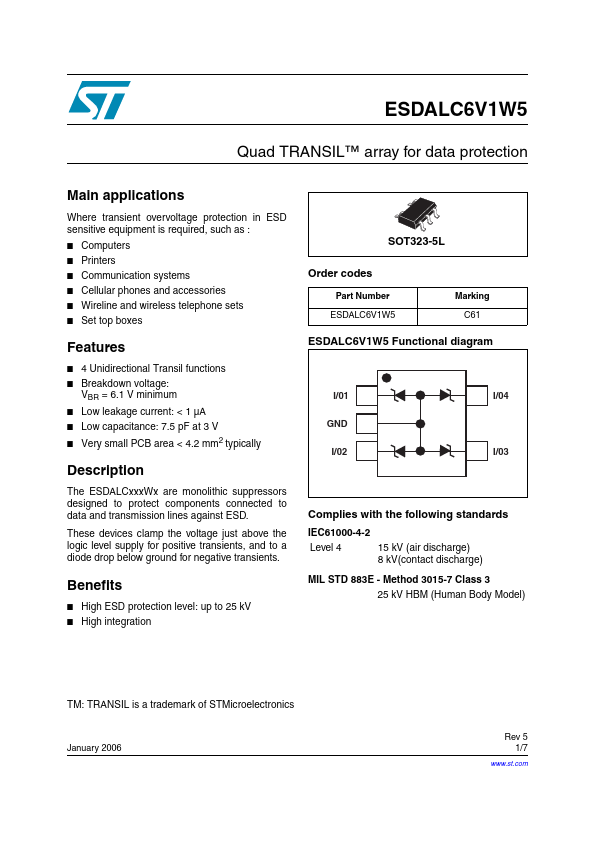

® ESDALC6V1W5 QUAD TRANSIL™ ARRAY FOR ESD PROTECTION Application Specific Discretes A.S.D. MAIN APPLICATIONS Where transient overvoltage protection in ESD sensitive equipment is required, such as : Computers Printers Communication systems and cellular phones Video equipment Set top boxes s s s s s FEATURES 4 unidirectional TRANSIL™ functions. ESD Protection: IEC61000-4-2 level 4 Breakdown voltage VBR = 6.1V min Low leakage current < 1µA @ 3 Volts Low capacitance device s s s s s SOT323-5L FUNCTIONAL DIAGRAM DESCRIPTION The ESDALC6V1W5 is a 4-bit wide monolithic suppressor which is designed to protect component connected to data and transmission lines against ESD.
