| Part number | 2SC3324 |
|---|---|
| Datasheet | 2SC3324_ToshibaSemiconductor.pdf |
| File Size | 738.69 KB |
| Manufacturer | Toshiba |
| Description | Silicon NPN TRANSISTOR |
|
|

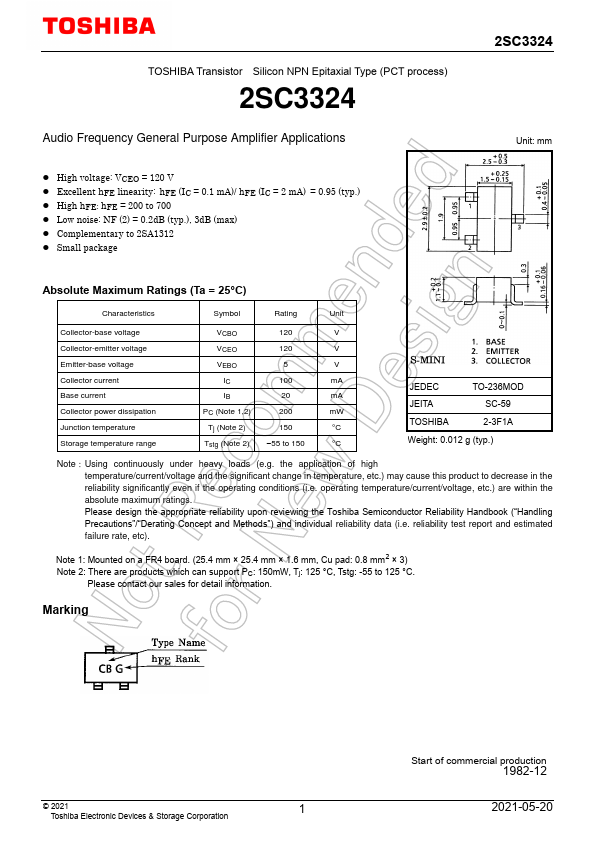

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC3324 Audio Frequency General Purpose Amplifier Applications High voltage: VCEO = 120 V Excellent hFE linearity: hFE (IC = 0.1 mA)/ hFE (IC = 2 mA) = 0.95 (typ.) High hFE:.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
2SC3324 | Silicon NPN Epitaxial Transistor | Kexin |
