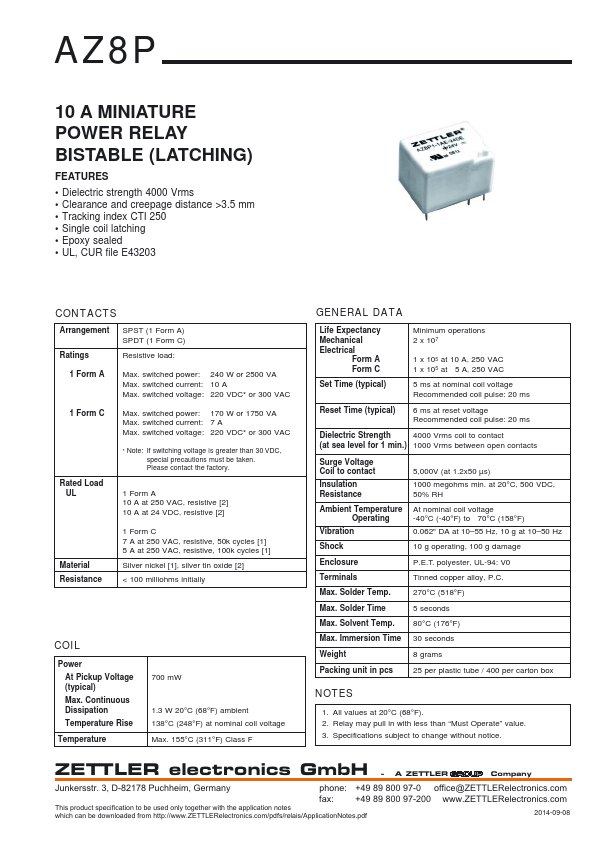

Datasheet Summary
10 A MINIATURE POWER RELAY BISTABLE (LATCHING)
Features
- Dielectric strength 4000 Vrms
- Clearance and creepage distance >3.5 mm
- Tracking index CTI 250
- Single coil latching
- Epoxy sealed
- UL, CUR file E43203
CONTACTS
Arrangement SPST (1 Form A) SPDT (1 Form C)
Ratings
Resistive load:
1 Form A
Max. switched power: 240 W or 2500 VA Max. switched current: 10 A Max. switched voltage: 220 VDC- or 300 VAC
1 Form C
Max. switched power: 170 W or 1750 VA Max. switched current: 7 A Max. switched voltage: 220 VDC- or 300 VAC
Rated Load UL
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
1 Form A 10 A at 250 VAC,...
